Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles

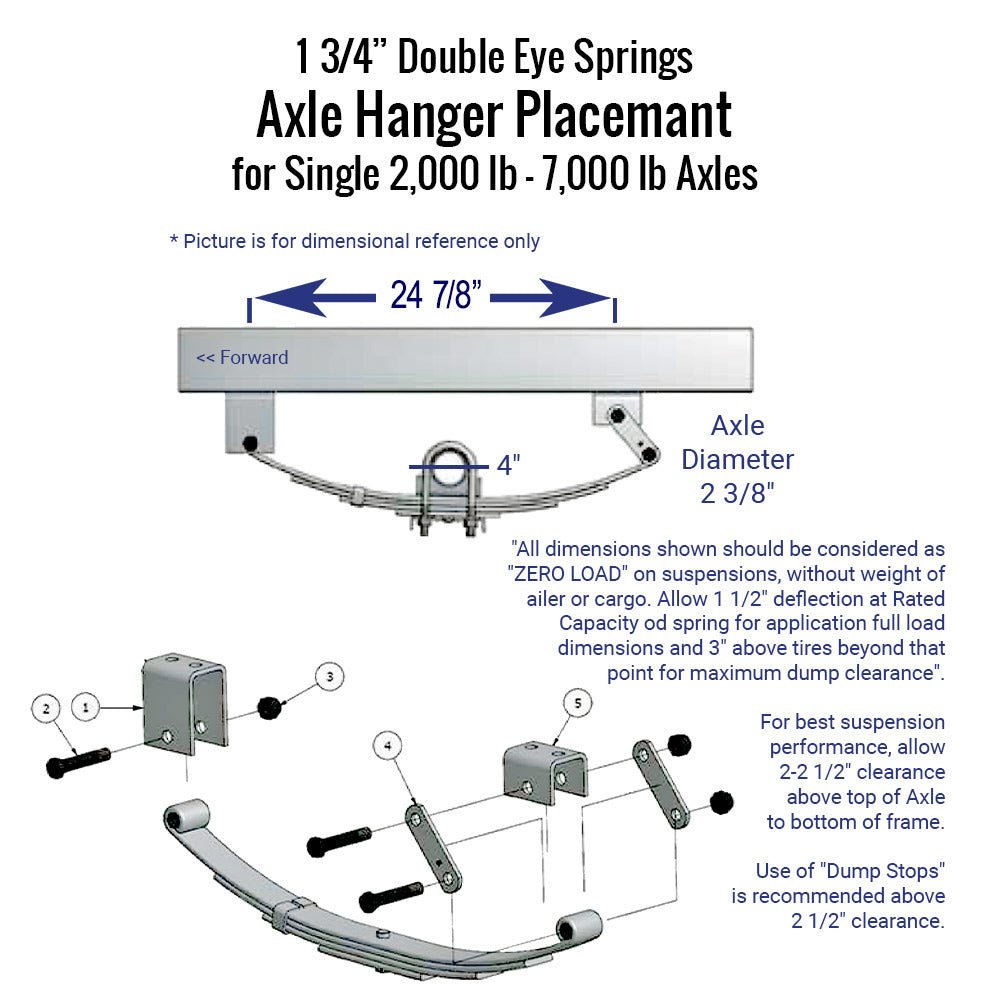

  • Axle Hanger Placement Diagram
1 2

Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles

Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles

SKU : 06DE-SUS1HNG-KT
$180
SAVE 0% (833) 910-3416
4.0
Rated 4.0 out of 5 stars
2 Reviews
OR
View full details
Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles
Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles

Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles

Trailer 5 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 3" Tube - 6000 lb Axles

$180
SAVE 0% (833) 910-3416
4.0
Rated 4.0 out of 5 stars
2 Reviews
  • Product Information
  • Reviews

When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

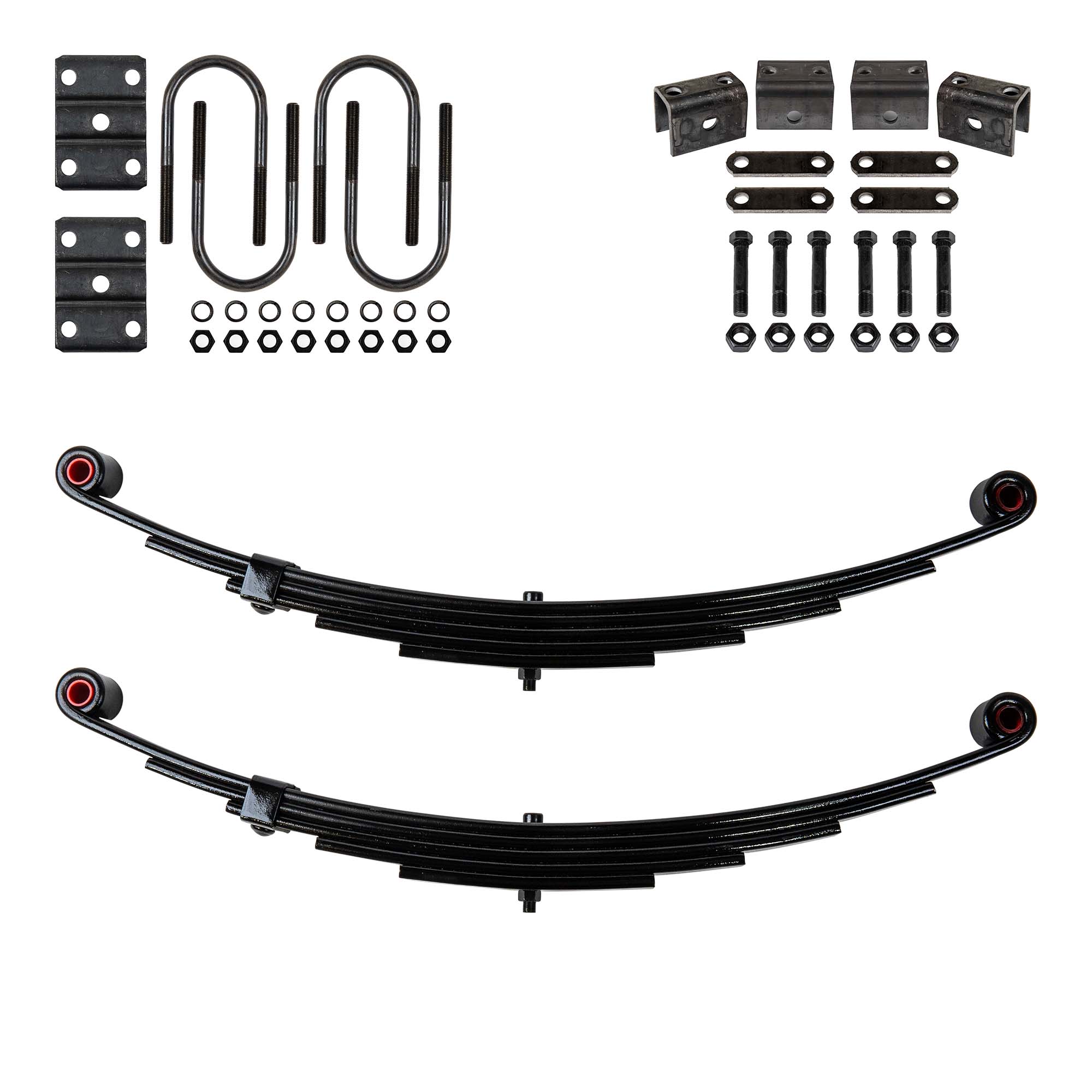

Contents:

  • (2) 5 Leaf 25 1/4" x 1 3/4" Trailer Double Eye Spring for 6000 lb Axles
  • (4) 7" Long U-bolts
  • (2) U-bolt Tie Plates for 1-3/4" or 2" Spring
  • (8) 1/2"-20 Hex Nuts
  • L=7" A=3" D=1/2"
  • (2) 1-1/2" tall front hangers
  • (2) 7/8" tall rear hangers
  • (4) 3-1/8" long shackle straps
  • (6) 3" long x 9/16" diameter shackle bolts
  • (6) 9/16" diameter lock nuts
  • UPC: 810127198869


Features:

  • Spring Specs: Number of leaves: 5, 1.75" Wide, 25.25" Long (from center to center of the eyes), 9/16" Eye Diameter, Nylon Bushing, 2900 lb capacity each, Axle capacity: 6000 lbs.
  • This kit has everything you need to mount your trailer's 3" round axle.
  • Spring seats required for mounting axle to leaf spring sold separately.
  • Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
    • 4.0
    Rated 4.0 out of 5 stars
    Based on 2 reviews
    Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 1 Total 2 star reviews: 0 Total 1 star reviews: 0
    50%would recommend this product
    Write a Review (Opens in a new window)
    2 reviews
    • TP
      Thomas P.
      Flag of United States
      3 years ago
      Rated 3 out of 5 stars
      6000 # axle kit

      Kit had wrong u bolts sent with, would not fit through plates that were sent

      Was this helpful?
      The Trailer Parts Outlet
      3 years ago

      Thomas,

      Thank you for leaving us a review, we love to hear back from our customers. We do apologize for sending the incorrect parts, did you receive the correct ones already? Feel free to give me a call directly at 936-349-5835

      Juan Hernandez
      Sales Manager
      936-349-5835

    • BW
      Ben W.
      Flag of United States
      3 years ago
      Rated 5 out of 5 stars
      6000lb single axle suspension/hanger kit for 3" tube

      On time delivery, order was exactly what I needed and had everything I needed in one package at a reasonable price. The only thing I would have changed is lighter weight leaf springs with the 3" U-Bolt if it was offered (3000lb vs 5200 or 6000lb). All lighter weight springs come with 2-3/8" u bolts, but I already had the axle, so I had to go with heavier springs. Great products, and I can live with the heaver springs so no complaints.

      Was this helpful?
      The Trailer Parts Outlet
      3 years ago

      Thank you for leaving us an outstanding review, I am glad that you were satisfied with our products! We love hearing from our customers.
