9K TK Trailer Axle Hub and Drum - 8 Lug - Grease

  • Single Specs: 10" x 2.25" Electric Brake Assembly 1 - Driver Side Assembly 4 Bolt Brake Flange Rated at 3,500 lbs per pair Pair Specs: 10" x 2.25" Electric Br3.5k Trailer Axle
  • 9K TK Trailer Axle Hub and Drum - 8 Lug - Grease
  • 9K TK Trailer Axle Hub and Drum - 8 Lug - Grease - Inside View
  • 12K-16K Trailer Axle Hydraulic Drum Brake Assembly - 12.25"x5" - 12000-16000 lb Capacity - Right Hand (Passenger Side).
  • 9K TK Trailer Axle Hub and Drum - 8 Lug - Grease - Top View
  • 9K TK Trailer Axle Hub and Drum - 8 Lug - Grease - Pregreased Assembly
  • 9000 lb TK Trailer Axle Electric Brake TK Service Kit - 9k Capacity
1 4

9K TK Trailer Axle Hub and Drum - 8 Lug - Grease

9K TK Trailer Axle Hub and Drum - 8 Lug - Grease

SKU : 09HUBDRUM865BARETK-12

Online price only

$3,611

Online price only

SAVE 0% (833) 910-3416
4.5
Rated 4.5 out of 5 stars
106 Reviews
Shipping: Calculated at Checkout
Hub/Drum Options:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • Reviews

Hub/Drum Only Specs:

  • 1 - 9K Hub/Drum Only 8x6.5 Bolt Pattern - Grease
  • 1 - 25520 Outer Race 3.265" OD (Pre-Pressed In Hub)
  • 1 - 382A Inner Race 3.813" OD (Pre-Pressed In Hub)
  • 8 - Swivel Flange Lug Nuts
  • Uses 25580 (1.75" ID) and 387A (1.25" OD) bearings (sold separately)
  • 5/8" Wheel Studs
  • Hub/Drum for 9,000 lb TK Trailer Axles

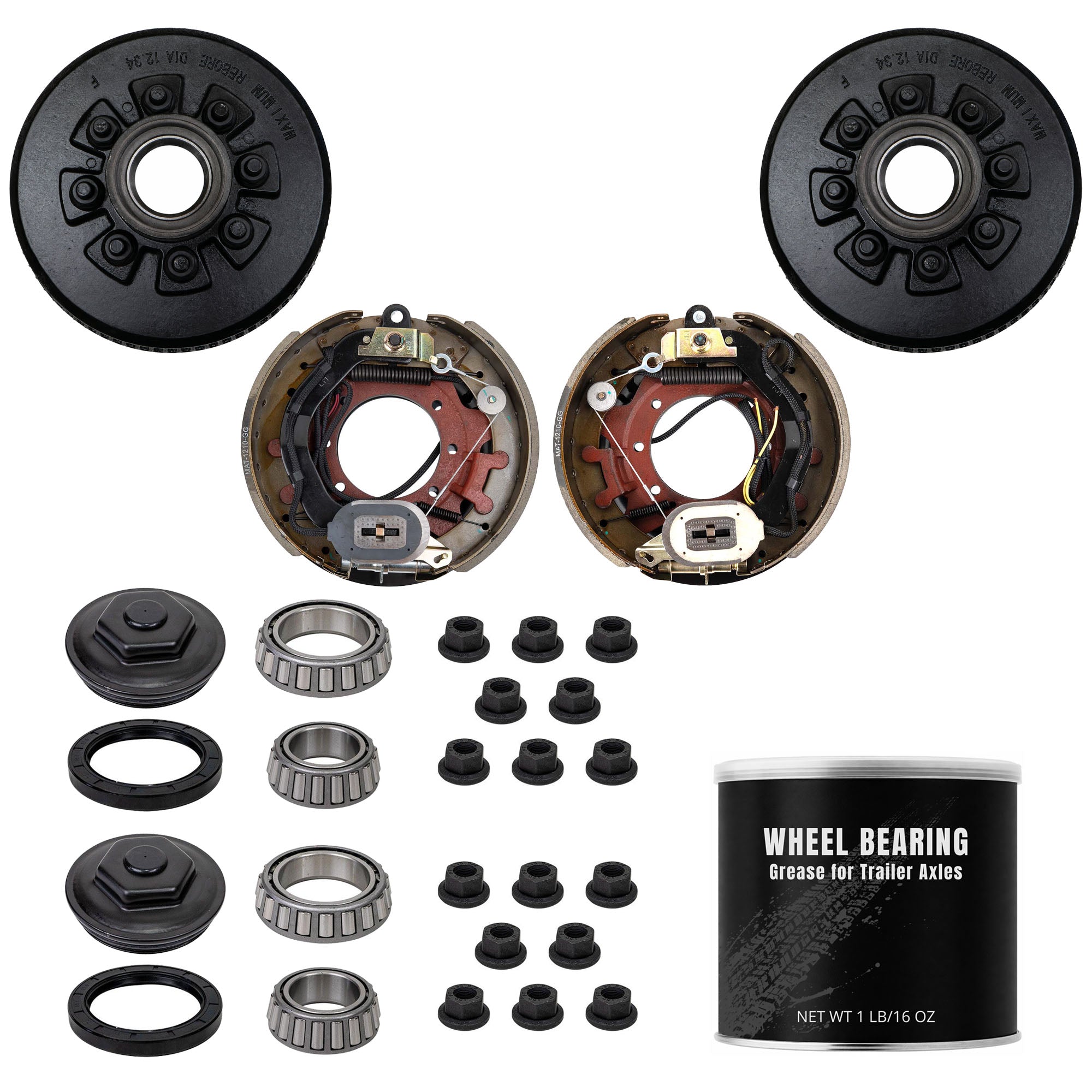

Hub/Drum Assembly Specs:

  • 1 - 9K Hub/Drum 8x6.5 Bolt Pattern - Grease
  • 1 - 9k (9,000 lb Capacity) Bearing Kit
    • 1 - 25580 Outer Bearing 1.750 I.D
    • 1 - 387A Inner Bearing 2.250 I.D
    • 1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
    • 1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
    • 1 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
  • 1 - Grease Cap
  • 1 - Grease Tub (1 lb)
  • 8 - Swivel Flange Lug Nuts
  • 5/8" Wheel Studs (Pre-Pressed In Hub)

TK Service Kit Specs:

Bulk Hub/Drum Specs:

  • 12 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
  • 12 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
  • 12 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

Crate Hub/Drum Specs:

  • 24 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
  • 24 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
  • 24 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

This 9K trailer axle hub and drum is an ideal option for a number of trailer types, and we know that you'll find it easy to install. The inner and outer races are already pressed in, and the 8 on 6.5" bolt pattern makes it easy to find suitable tire and wheel assemblies (TWAs) for your trailer. We can help you find the seals, bearings, caps, and nuts that you need to complete your repairs, and we're always happy to answer any questions you may have. Order your new 9K trailer axle hub and drum from The Trailer Parts Outlet today!

Features:

  • Grease Bath Hub and Drum
  • Hub & Drum with 8 on 6.5" Bolt Pattern For 9,000 lb TK & Texas Pride Trailer Axles
  • The races are pre-pressed for your convenience
  • The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately
  • Each hub has a capacity of 4,500 lbs
  • Spindle nut and washer sold separately
  • NOTE: This hub/drum is only compatible with TK and Texas Pride Trailer Axles
