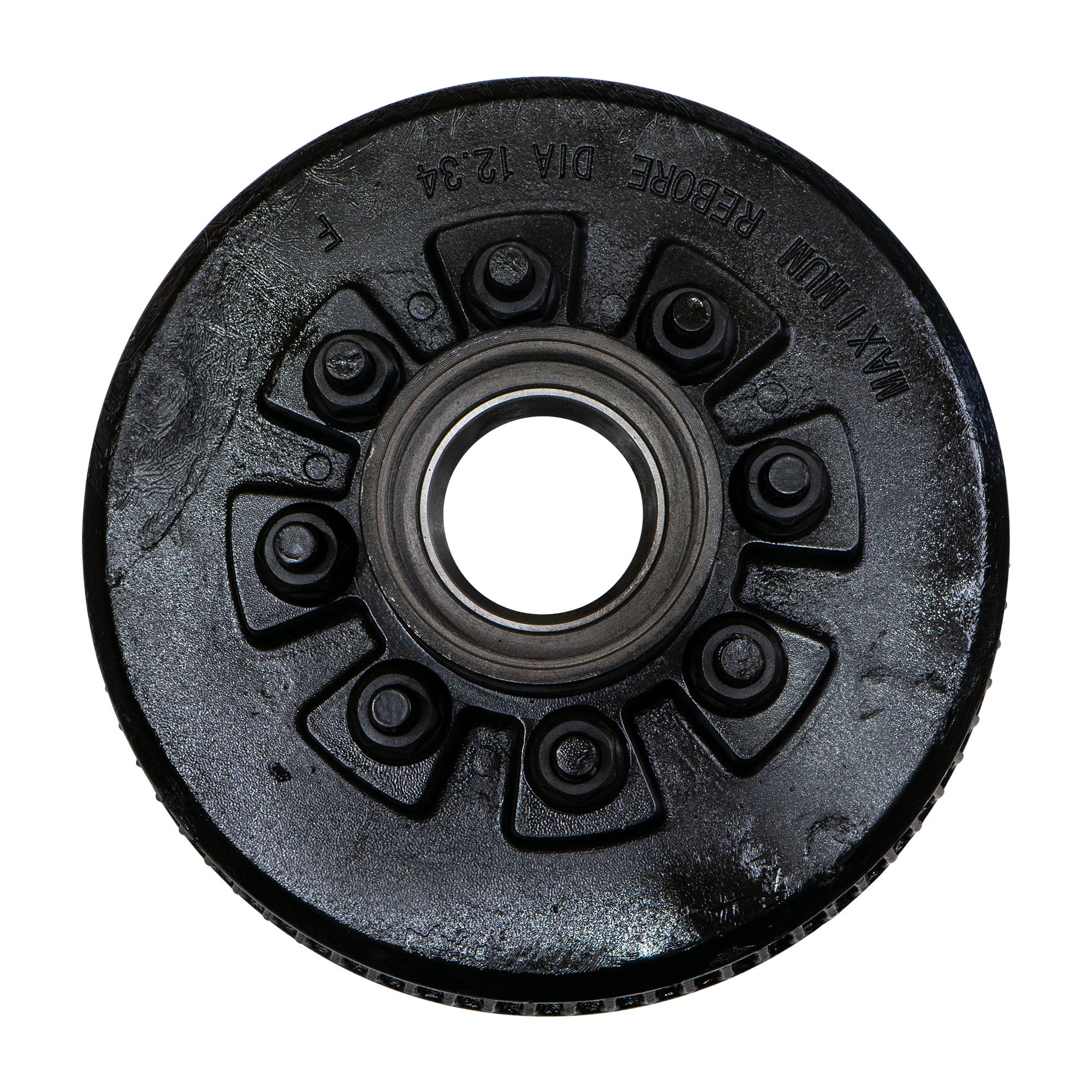

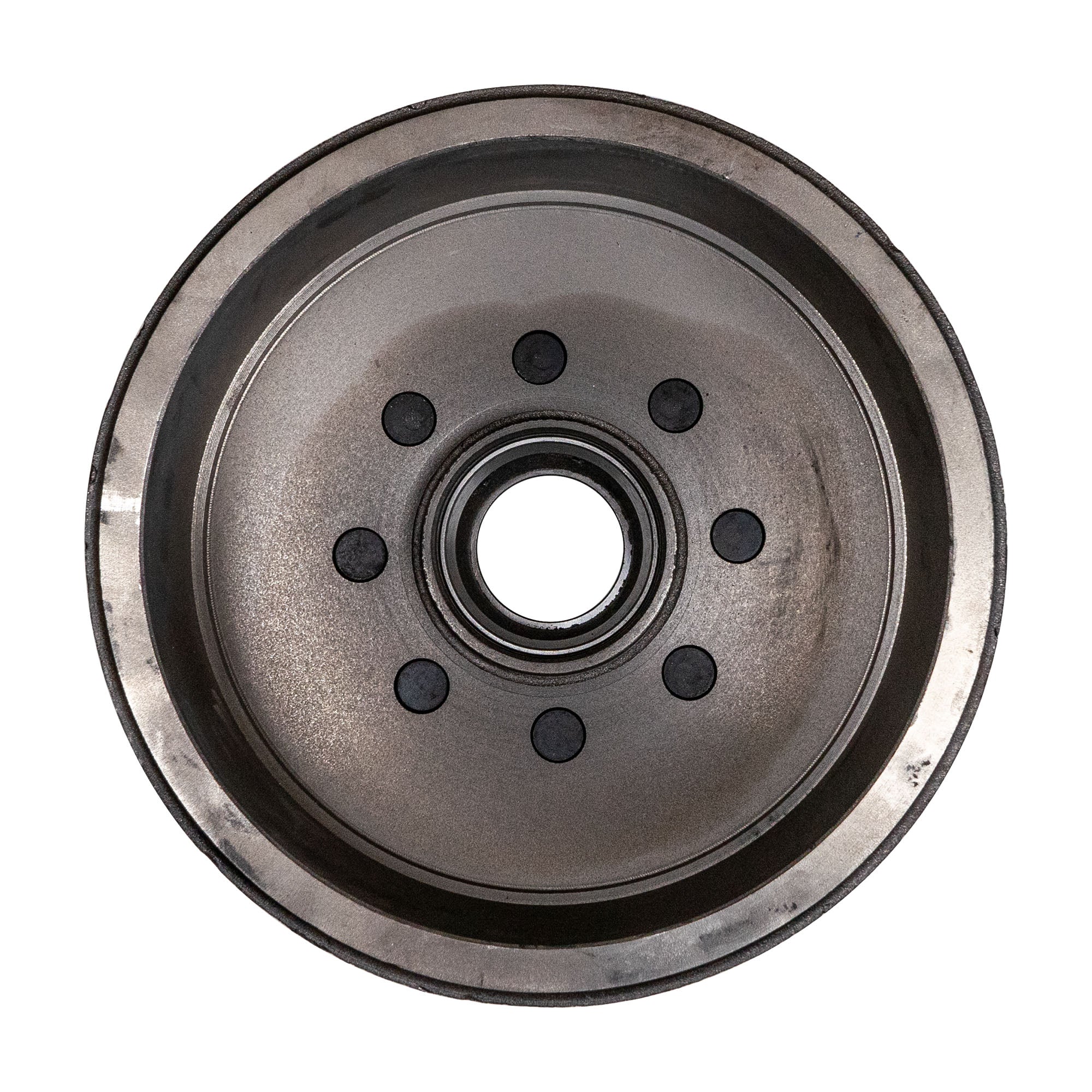

9K TK Trailer Axle Hub and Drum - 8 Lug - Grease

Name: 9K TK Trailer Axle Hub and Drum - 8 Lug - Grease
Brand: The Trailer Parts Outlet
Price: 312.0 CAD
Availability: InStock
Rating: 4.5 (94 reviews)

1 4

9K TK Trailer Axle Hub and Drum - 8 Lug - Grease

SKU : 09HUBDRUM865BARETK

Online price only

$312

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

94 Reviews

Shipping: Calculated at Checkout

Hub/Drum Options: Variant image

Hub/Drum

Hub/Drum Assembly

Upgrade to TK Service Kit

Bulk Hub/Drums (12 pc)

Crate of Hub/Drums (24 pc)

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

Hub/Drum Only Specs:

1 - 9K Hub/Drum Only 8x6.5 Bolt Pattern - Grease
1 - 25520 Outer Race 3.265" OD (Pre-Pressed In Hub)
1 - 382A Inner Race 3.813" OD (Pre-Pressed In Hub)
8 - Swivel Flange Lug Nuts
Uses 25580 (1.75" ID) and 387A (1.25" OD) bearings (sold separately)
5/8" Wheel Studs
Hub/Drum for 9,000 lb TK Trailer Axles

Hub/Drum Assembly Specs:

1 - 9K Hub/Drum 8x6.5 Bolt Pattern - Grease
1 - 9k (9,000 lb Capacity) Bearing Kit
- 1 - 25580 Outer Bearing 1.750 I.D
- 1 - 387A Inner Bearing 2.250 I.D
- 1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 1 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
1 - Grease Cap
1 - Grease Tub (1 lb)
8 - Swivel Flange Lug Nuts
5/8" Wheel Studs (Pre-Pressed In Hub)

TK Service Kit Specs:

2 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
2 - 9k (9,000 lb Capacity) Bearing Kit
- 2 - 25580 Outer Bearing 1.750 I.D
- 2 - 387A Inner Bearing 2.250 I.D
- 2 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 2 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
2 - Metal Grease Cap
16 - Swivel Flange Lug Nuts
1 - 9k Trailer Axle Brake - 10,000 lb 12.25x3.375" - K23-450 - Left Hand (Driver Side)
1 - 9k Trailer Axle Brake - 10,000 lb 12.25x3.375" -Right Hand (Passenger Side)
1 - Grease Tub (1 lb)

Bulk Hub/Drum Specs:

12 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
12 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
12 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

Crate Hub/Drum Specs:

24 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
24 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
24 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

This 9K trailer axle hub and drum is an ideal option for a number of trailer types, and we know that you'll find it easy to install. The inner and outer races are already pressed in, and the 8 on 6.5" bolt pattern makes it easy to find suitable tire and wheel assemblies (TWAs) for your trailer. We can help you find the seals, bearings, caps, and nuts that you need to complete your repairs, and we're always happy to answer any questions you may have. Order your new 9K trailer axle hub and drum from The Trailer Parts Outlet today!

Features:

Grease Bath Hub and Drum
Hub & Drum with 8 on 6.5" Bolt Pattern For 9,000 lb TK & Texas Pride Trailer Axles
The races are pre-pressed for your convenience
The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately
Each hub has a capacity of 4,500 lbs
Spindle nut and washer sold separately
NOTE: This hub/drum is only compatible with TK and Texas Pride Trailer Axles

Hub/Drum Only Specs:

1 - 9K Hub/Drum Only 8x6.5 Bolt Pattern - Grease
1 - 25520 Outer Race 3.265" OD (Pre-Pressed In Hub)
1 - 382A Inner Race 3.813" OD (Pre-Pressed In Hub)
8 - Swivel Flange Lug Nuts
Uses 25580 (1.75" ID) and 387A (1.25" OD) bearings (sold separately)
5/8" Wheel Studs
Hub/Drum for 9,000 lb TK Trailer Axles

Hub/Drum Assembly Specs:

1 - 9K Hub/Drum 8x6.5 Bolt Pattern - Grease
1 - 9k (9,000 lb Capacity) Bearing Kit
- 1 - 25580 Outer Bearing 1.750 I.D
- 1 - 387A Inner Bearing 2.250 I.D
- 1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 1 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
1 - Grease Cap
1 - Grease Tub (1 lb)
8 - Swivel Flange Lug Nuts
5/8" Wheel Studs (Pre-Pressed In Hub)

TK Service Kit Specs:

2 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
2 - 9k (9,000 lb Capacity) Bearing Kit
- 2 - 25580 Outer Bearing 1.750 I.D
- 2 - 387A Inner Bearing 2.250 I.D
- 2 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 2 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
2 - Metal Grease Cap
16 - Swivel Flange Lug Nuts
1 - 9k Trailer Axle Brake - 10,000 lb 12.25x3.375" - K23-450 - Left Hand (Driver Side)
1 - 9k Trailer Axle Brake - 10,000 lb 12.25x3.375" -Right Hand (Passenger Side)
1 - Grease Tub (1 lb)

Bulk Hub/Drum Specs:

12 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
12 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
12 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

Crate Hub/Drum Specs:

24 - 9K Trailer Axle Hub/Drum 8x6.5 - Grease
24 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
24 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

Features:

Grease Bath Hub and Drum
Hub & Drum with 8 on 6.5" Bolt Pattern For 9,000 lb TK & Texas Pride Trailer Axles
The races are pre-pressed for your convenience
The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately
Each hub has a capacity of 4,500 lbs
Spindle nut and washer sold separately
NOTE: This hub/drum is only compatible with TK and Texas Pride Trailer Axles
