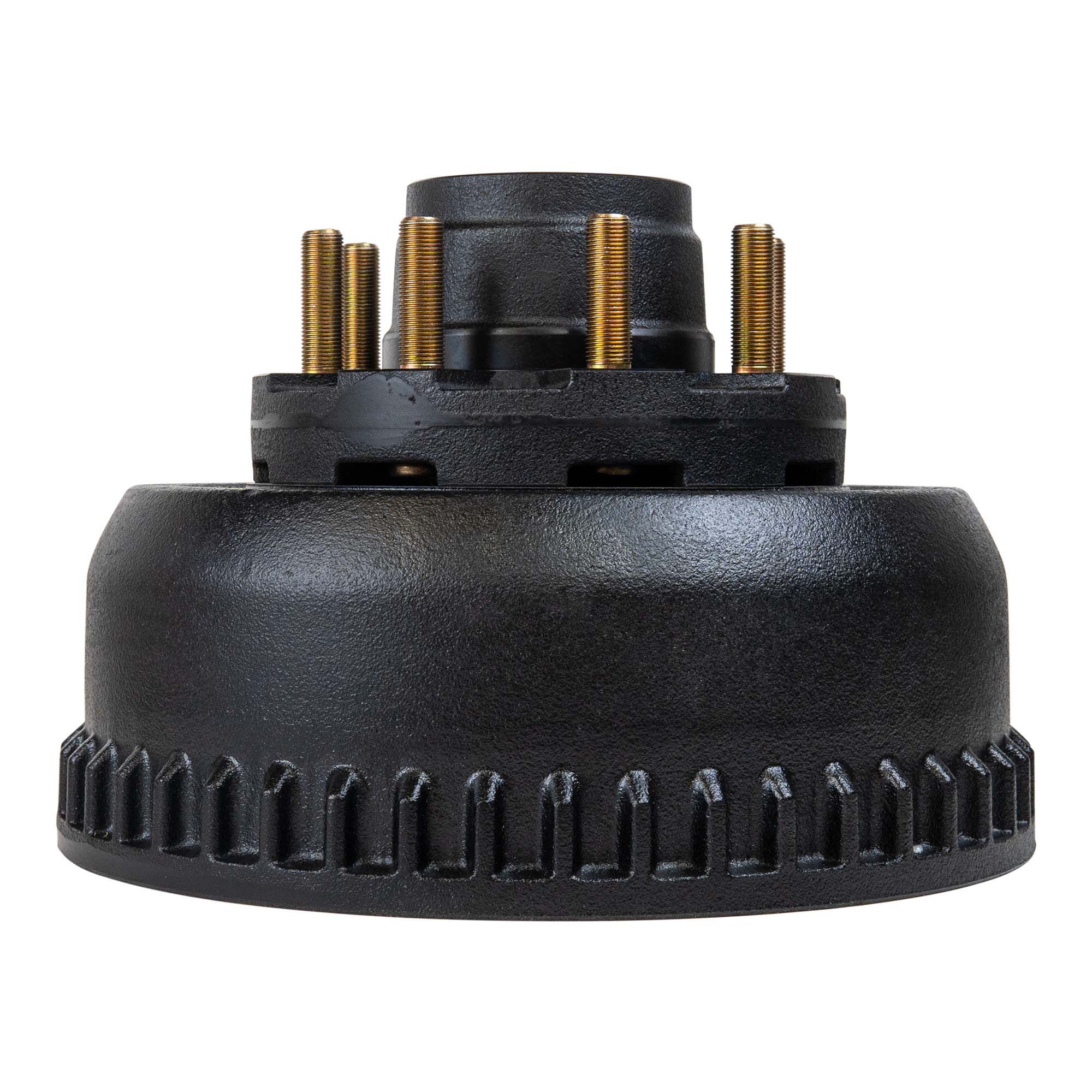

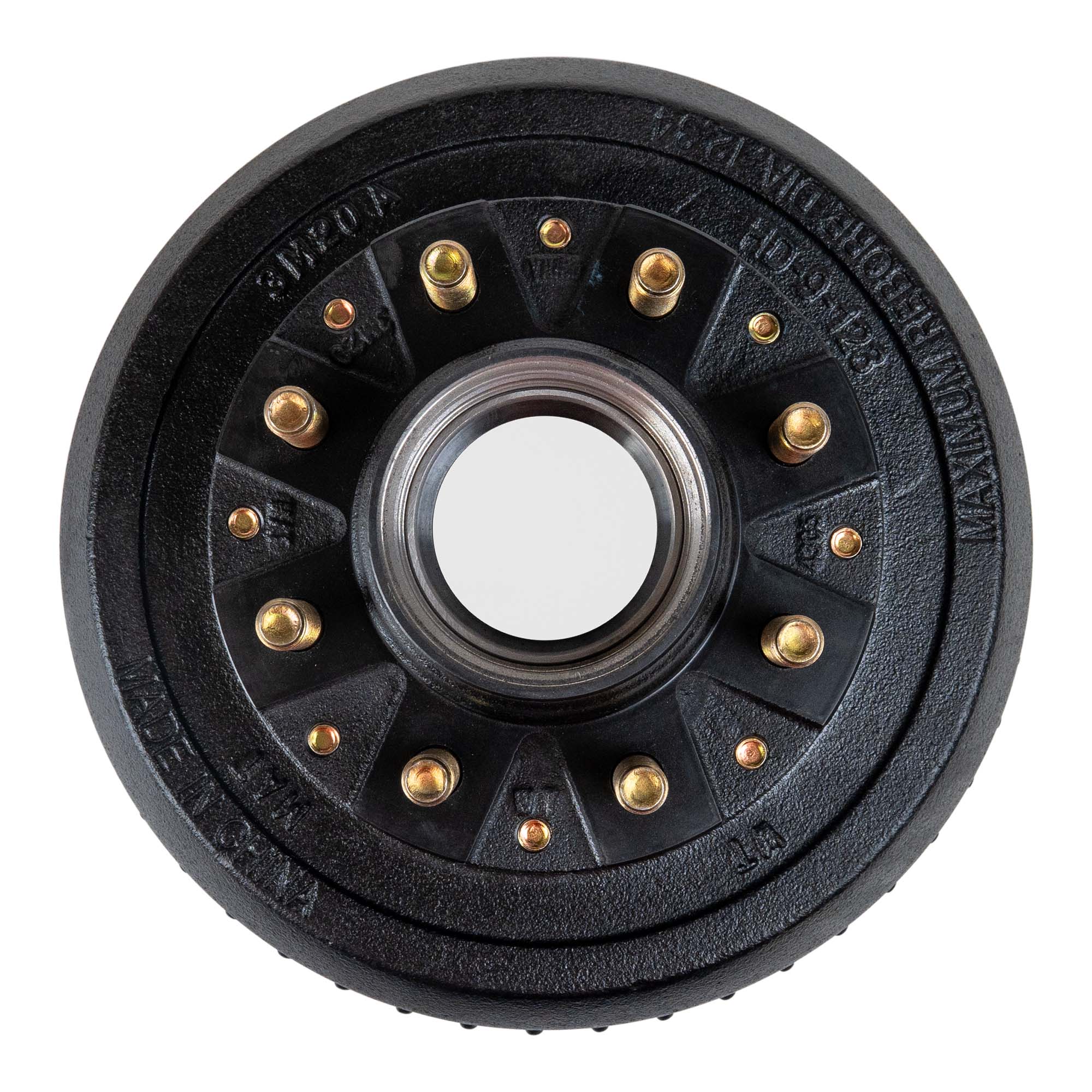

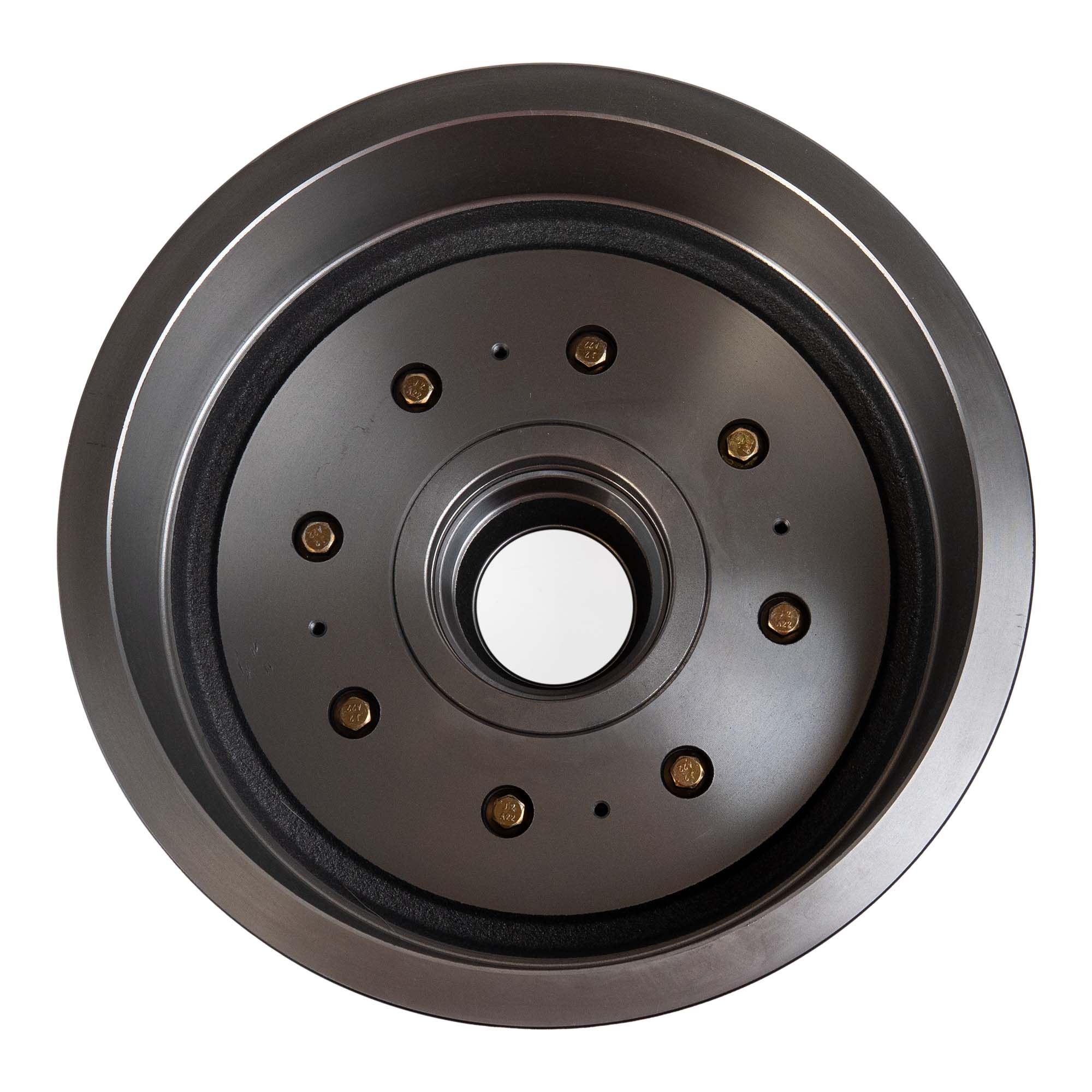

10K GD Trailer Axle Hub and Drum - 8 Lug (Made After May 2013)

Name: 10K GD Trailer Axle Hub and Drum - 8 Lug (Made After May 2013)
Brand: The Trailer Parts Outlet
Price: 298.0 CAD
Availability: InStock
Rating: 4.5 (99 reviews)

1 5

10K GD Trailer Axle Hub and Drum - 8 Lug (Made After May 2013)

SKU : 0910GDHUBDRUM865-58BARE-NEWSTYLETK

Online price only

$298

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

99 Reviews

Shipping: Calculated at Checkout

Hub/Drum Options: Variant image

Hub/Drum

Hub/Drum Assembly

Upgrade to TK Service Kit

Bulk Hub/Drums (15 pc)

Crate of Hub/Drums (36 pc)

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

General Duty Hub/Drum Only Specs:

1 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)
1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
Uses 25580 (1.75" ID) and 387A (1.25" OD) bearings (sold separately)
5/8" Wheel Studs
Hub/Drum for 10,000 lb GD Axles Manufactured After 05/2013
Dexter Compatible
This Hub/Drum replaces Dexter single piece 8-415 (axles built between 7/2009 and 5/2013)
This hub/drum is NOT COMPATIBLE with Rockwell Axles

General Duty Hub/Drum Assembly Specs:

1 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)
1 - 10k (10,000 lb Capacity) Bearing Kit
- 1 - 25580 Outer Bearing 1.750 I.D
- 1 - 387A Inner Bearing 2.250 I.D
- 1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 1 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
1 - Oil Bath Cap and Plug 21-88
1 - 10K GD Tang Washer - 1.5 I.D. x 0.60
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
8 - Cone Wheel Lug Nuts
5/8" Wheel Studs

General Duty TK Service Kit Specs:

2 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)
2 - 10k (10,000 lb Capacity) Bearing Kit
- 2 - 25580 Outer Bearing 1.750 I.D
- 2 - 387A Inner Bearing 2.250 I.D
- 2 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 2 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
2 - Oil Bath Cap and Plug 21-88
16 - Cone Wheel Lug Nuts
2 - 10K GD Tang Washer - 1.5 I.D. x 0.60
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 10k General Duty Trailer Axle Brake - 12.25x3.375" - Left Hand (Driver Side)
1 - 10k General Duty Trailer Axle Brake - 12.25x3.375" - Right Hand (Passenger Side)

General Duty Bulk Hub/Drum Specs:

15 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)
15 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
15 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

General Duty Crate Hub/Drum Specs:

36 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)
36 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
36 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

This 10K general-duty trailer axle hub and drum is an ideal option for a number of trailer types, and we know that you'll find it easy to install. The inner and outer races are already pressed in, and the 8 on 6.5" bolt pattern makes it easy to find suitable tire and wheel assemblies (TWAs) for your trailer. We can help you find the seals, bearings, caps, and nuts that you need to complete your repairs, and we're always happy to answer any questions you may have. Order your new 9K-10K general-duty trailer axle hub and drum from The Trailer Parts Outlet today!

Features:

Hub & Drum with 8 on 6.5" Bolt Pattern for 10,000 lb General Duty Axles Manufactured May 2013-Present
Supersedes 1 piece hub/drum manufactured from 2009-2013
The races are pre-pressed for your convenience.
The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately
This hub is designed for use with 10K General Duty axle spindles
Each hub has a capacity if 5,000lbs
The 12-1/4" x 3-3/8" drum is already mounted to the hub for ease of installation
Spindle nut and washer sold separately
This Hub/Drum replaces Dexter single piece 8-415 (axles built between 7/2009 and 5/2013)
This hub/drum is NOT COMPATIBLE with Texas Pride or Rockwell Axles
