This hub/drum is compatible with - True 8k TK HD Trailer Axle - 8000 lb Electric Brake 8 lug 9/16" Studs (12 1/4" x 3 3/8" Brake - 3.5" Tube)

Hub/Drum Only Specs:

• 1 - 8K Hub/Drum - Grease Bath - 8x6.5 Bolt Pattern

• 1 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)
• 1 - 02420 Outer Race 2.688" OD (Pre-Pressed In Hub)
• 4,000 lb Capacity Per Hub
• Use with a 12-1/4" x 3-3/8" brake
• Has a 4.56" pilot diameter (Old Style)

• 9/16" Studs (Pre-Pressed In Hub)

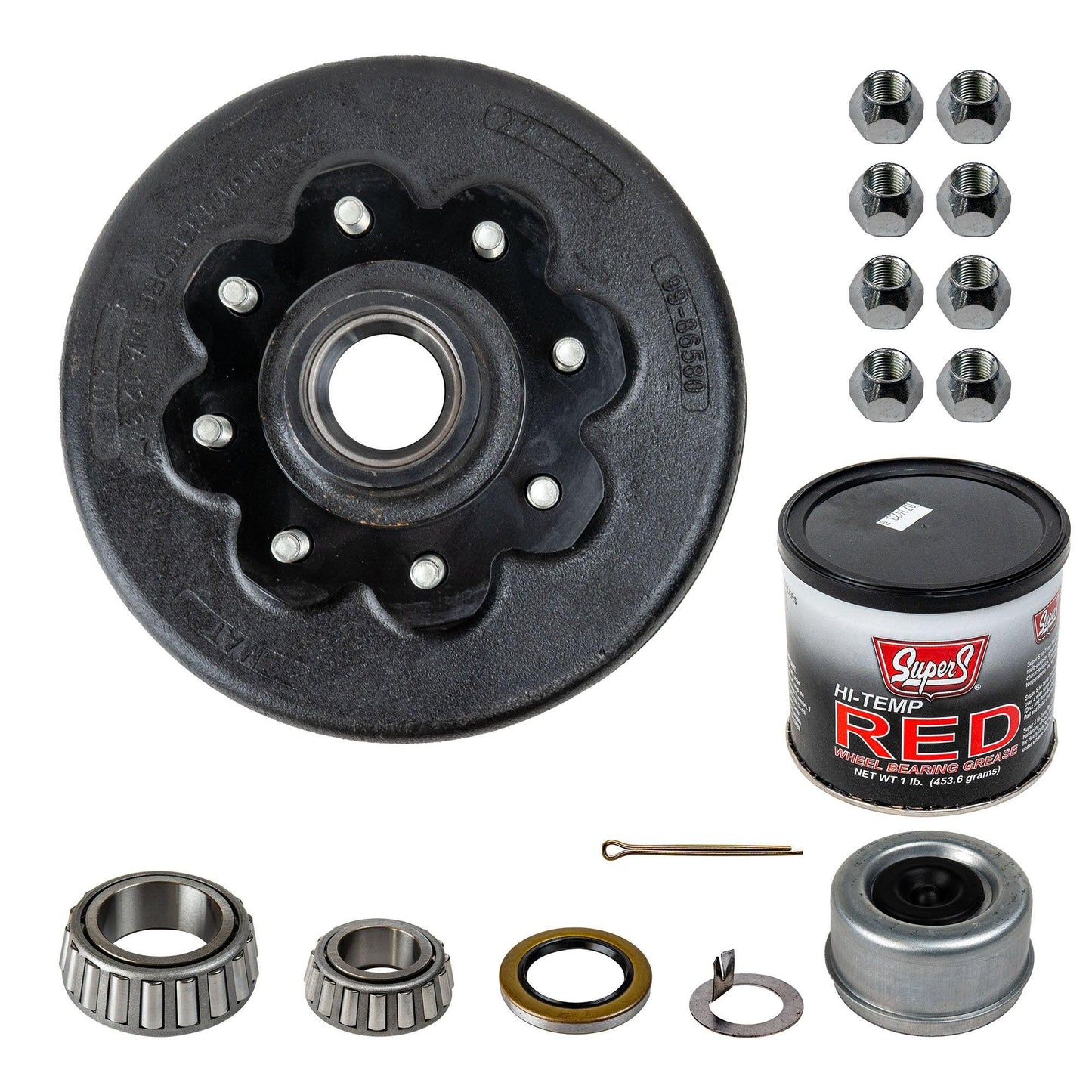

Hub/Drum Assembly Specs:

• 1 - 8K Hub/Drum - Grease Bath - 8x6.5 Bolt Pattern

• 1 - 8k (8000 lb Capacity) Bearing Kit
  • 1 - 10-36 Double Lip Grease Seal 3.376" OD 2.250" ID
  • 1 - 25520 Inner Race 3.265" O.D (Pre-Pressed In Hub)

  • 1 - 02420 Outer Race 2.688" O.D (Pre-Pressed In Hub)
  • 1 - 25580 Inner Bearing 1.750" I.D

  • 1 - 02475 Outer Bearing 1.250" I.D

  • 1 - 8,000 lb Grease Cap with Plug

  • 1 - Cotter Pin
  • 1 - Tang Washer

• 1 - Grease Tub (1 lb)
• 8 - Cone Wheel Lug Nuts

This 8K trailer axle grease hub and drum assembly features an 8 on 6.5" configuration, and it's a great choice for a number of different trailers. The inner and outer races are already pressed in, and we can help you find the grease seal, grease cap, inner and outer bearings, and wheel nuts that fit. If you're working on a trailer that needs to be back on the road, then let The Trailer Parts Outlet provide you with products that will get the job done. Order your new 8K trailer axle hub and drum assembly from our online store today!

Features:

• Hub & Drum with 8 on 6.5" Bolt Pattern for 8k Axles
• Hub and drum comes with races pre-pressed for your convenience
• This hub & drum is designed for use with a #42 spindle
• Each hub & drum has a capacity of 4,000 lbs
• Hub & drum uses 25580 inner bearing and a 02475 outer bearing (sold separately)
• The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer (sold separately)
• Kit with hardware is available
