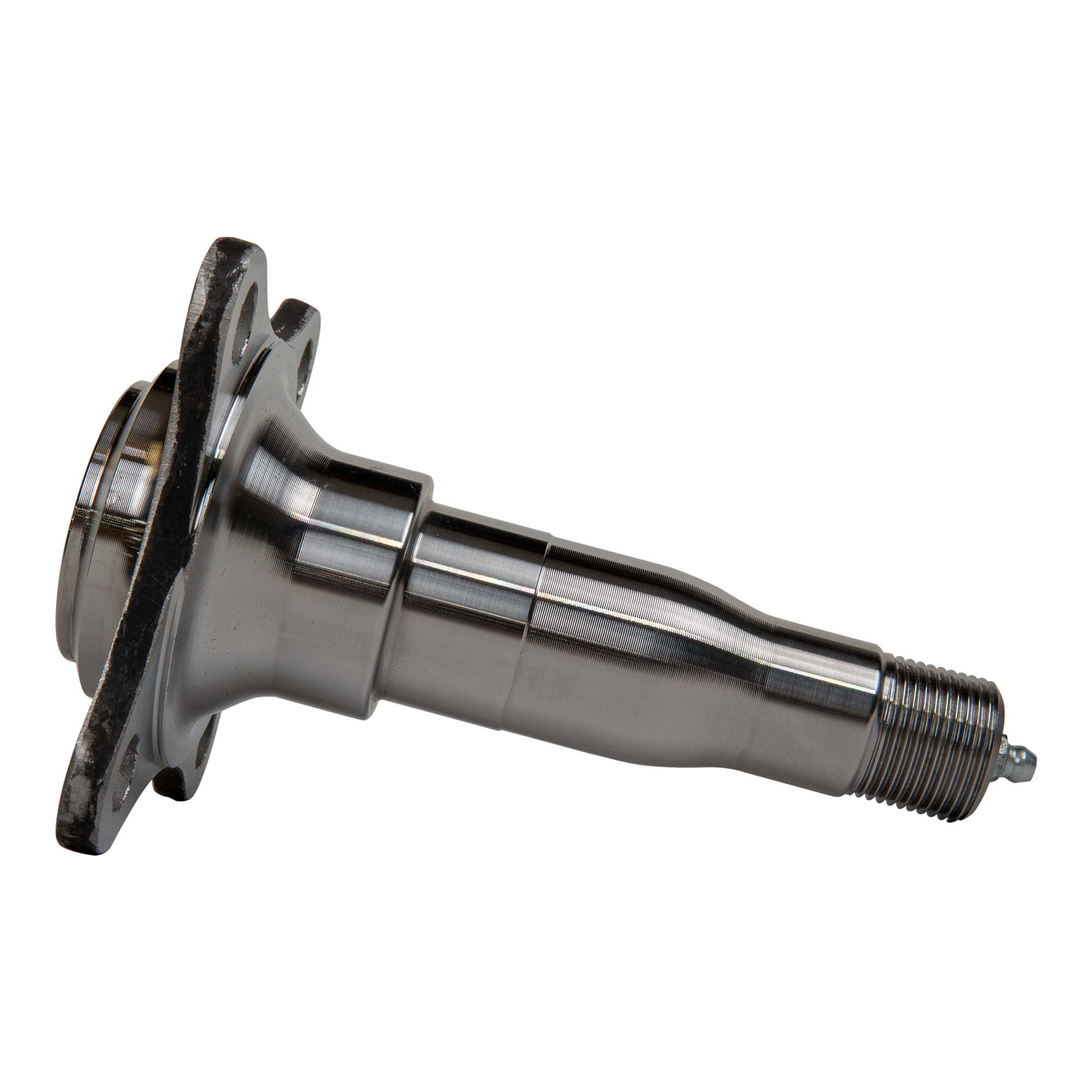

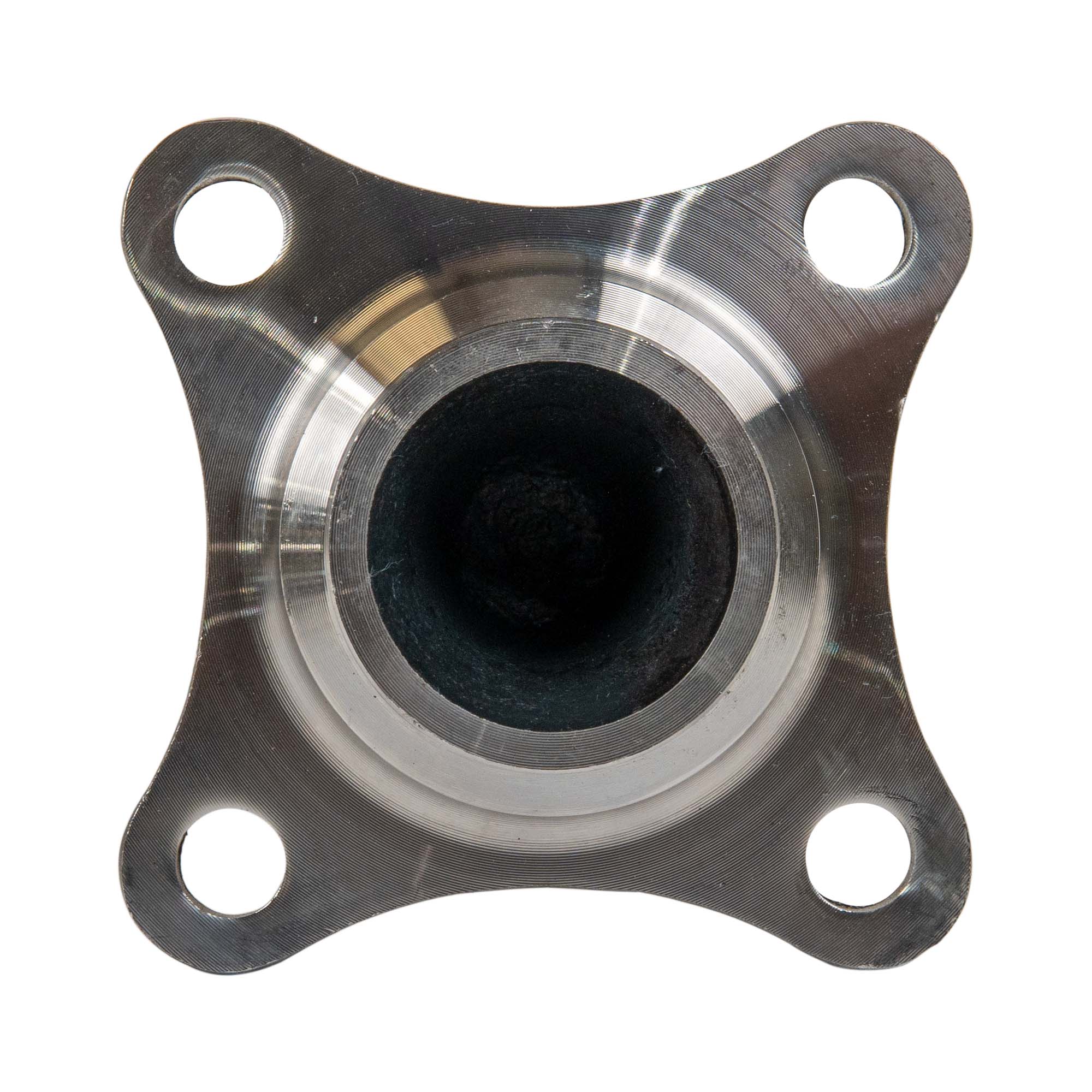

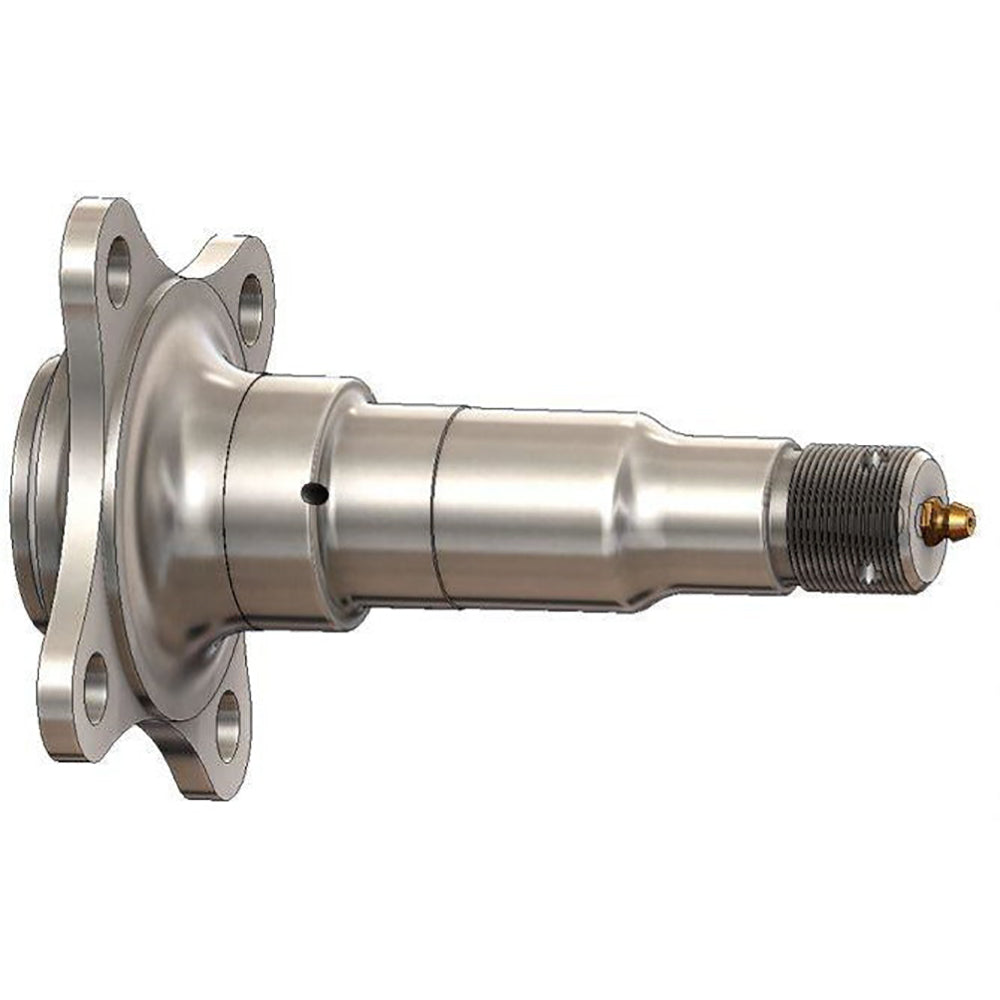

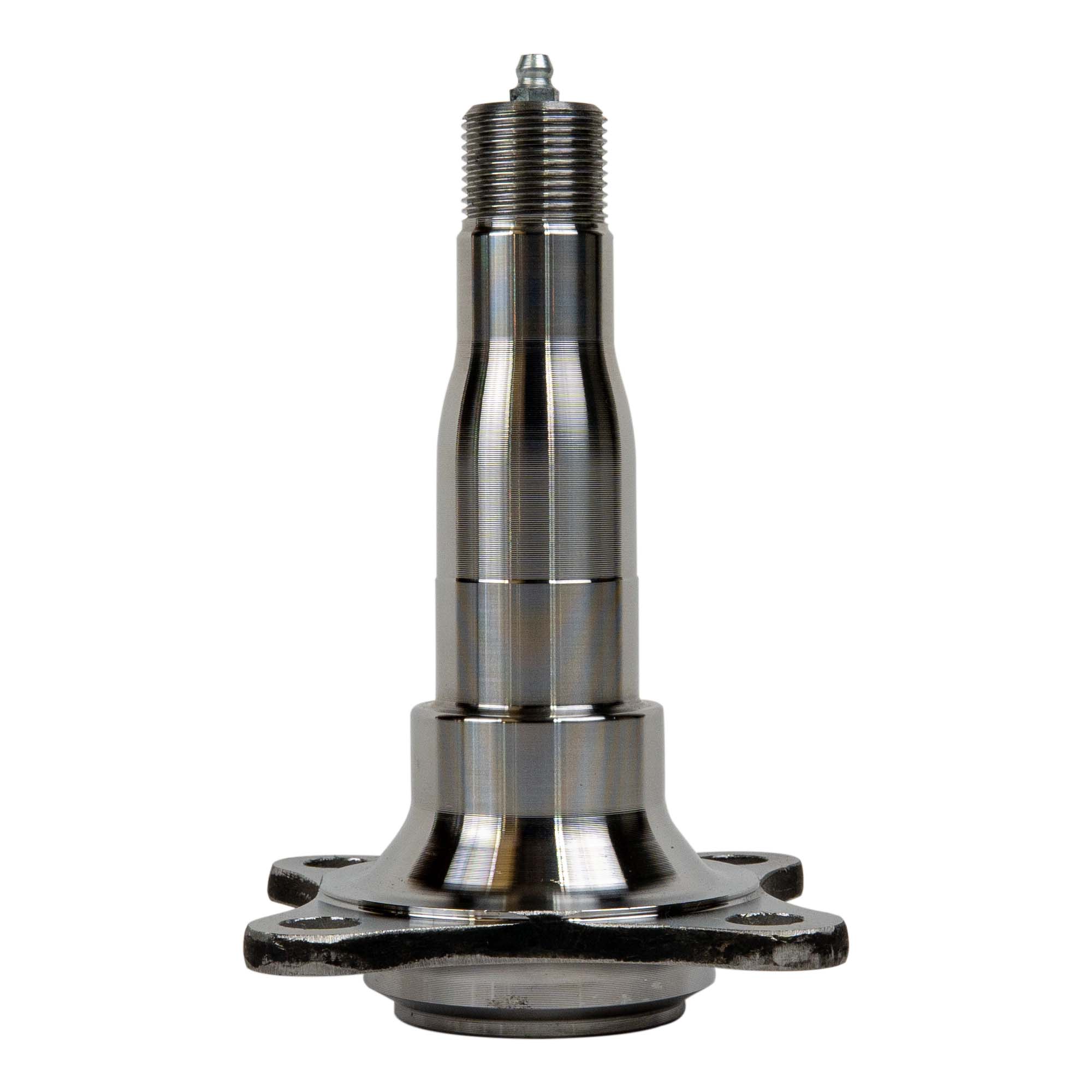

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

Name: #84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter
Brand: The Trailer Parts Outlet
SKU: 35SPINDLE-84
Price: 29.0 CAD
Availability: InStock

1 6

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

SKU : 35SPINDLE-84

Online price only

$29

Online price only

SAVE 0% (833) 910-3416

4.9

Rated 4.9 out of 5 stars

7 Reviews

Shipping: Calculated at Checkout

Tax Exempt? Enter info in cart when you're done shopping.

Kit Options: Variant image

Spindle

Pair

Spindle Kit

Spindle Kit Pair

Upgrade to Weld Your Own Idler Axle Kit

Upgrade to Weld Your Own Brake Axle Kit

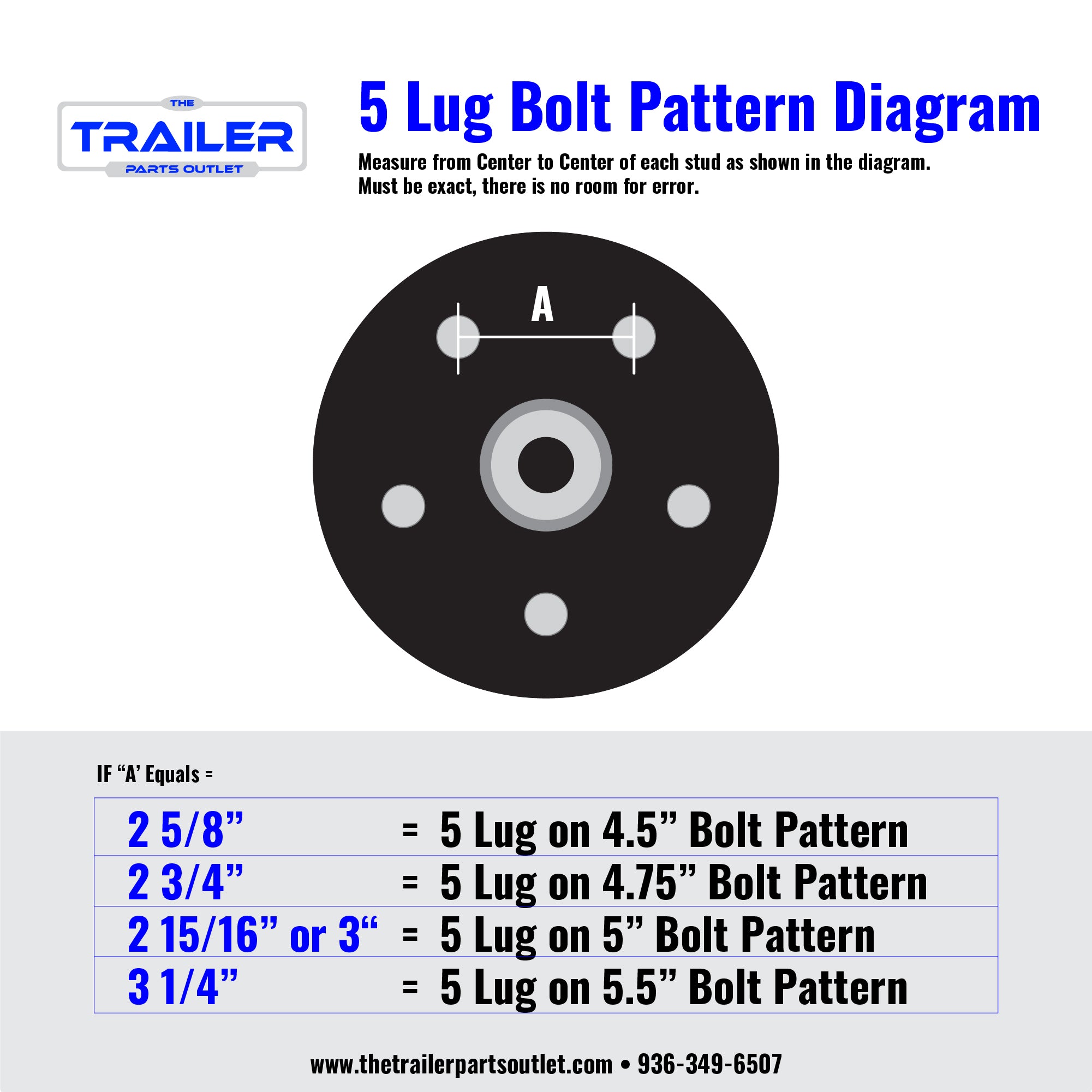

Bolt Pattern: 5x4.5 5x5

Product variants

Quantity

View full details

Product Information
Reviews

Spindle Only Specs:

1 - 3.5k Weld-On Spindle
Application: 3,500-lb trailer axles
Spindle capacity: 1,750 lb
Overall spindle length: 6.5"

Spindle Pair Specs:

2 - 3.5k Weld-On Spindles
Application: 3,500-lb trailer axles
Spindle capacity: 1,750 lb
Overall spindle length: 6.5"

Spindle Kit Specs:

1 - 3.5k Weld-On Spindle
1 - 3,500 lb Trailer Axle Bearing Kit
- 1 - L68111 Inner Race 2.362" OD
- 1 - L44610 Outer Race 1.98" OD
- 1 - L44649 Outer Bearing 1.063" ID
- 1 - L68149 Inner Bearing 1.378" ID
- 1 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
- 1 - 3,500 lb Grease Cap with Plug
- 1 - Cotter Pin
1 - Spindle Washer
1 - Spindle Nut

Spindle Kit Pair Specs:

2 - 3.5k Weld-On Spindle
2 - 3,500 lb Trailer Axle Bearing Kit
- 2 - L68111 Inner Race 2.362" OD
- 2 - L44610 Outer Race 1.98" OD
- 2 - L44649 Outer Bearing 1.063" ID
- 2 - L68149 Inner Bearing 1.378" ID
- 2 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
- 2 - 3,500 lb Grease Cap with Plug
- 2 - Cotter Pin
2 - Spindle Washer
2 - Spindle Nut

Weld Your Own Idler Axle Kit Specs:

2 - 3.5k Weld-On Spindle
2 - 3.5k Idler Hub 5x4.5 or 5x5
2 - 3,500 lb Trailer Axle Bearing Kit
- 2 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
- 2 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)
- 2 - L44649 Outer Bearing 1.063" ID
- 2 - L68149 Inner Bearing 1.378" ID
- 2 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
- 2 - 3,500 lb Grease Cap with Plug
- 2 - Cotter Pin
2 - Spindle Washer
2 - Spindle Nut
10 - Cone Wheel Lug Nuts
1 - Grease Tub (1 lb)

Weld Your Own Brake Axle Kit Specs:

2 - 3.5k Weld-On Spindle
2 - 3.5k Brake Drum 5x4.5 or 5x5
1 - Left (Driver Side) 10x2.25" Brake Assembly
1 - Right (Passenger Side) 10x2.25" Brake Assembly
2 - 3,500 lb Trailer Axle Bearing Kit
- 2 - L68111 Inner Race 2.362" OD (Pre-Pressed In Drum)
- 2 - L44610 Outer Race 1.98" OD (Pre-Pressed In Drum)
- 2 - L44649 Outer Bearing 1.063" ID
- 2 - L68149 Inner Bearing 1.378" ID
- 2 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
- 2 - 3,500 lb Grease Cap with Plug
- 2 - Cotter Pin
2 - Spindle Washer
2 - Spindle Nut
10 - Cone Wheel Lug Nuts
8 - Brake Mounting Nuts
1 - Grease Tub (1 lb)

This 3.5K trailer axle spindle is designed for Dexter, TK, and Rockwell American axles. It can provide the fit that you need to get your trailer back on the road. It's high-quality construction helps it stand up to daily wear and tear, so no matter where your next job takes you, you can feel confident that your spindle will keep your trailer rolling.

Features:

Weld-on installation
Sturdy steel construction
Works with 3.5K bearing kit (sold separately)
- 3.5k (3500 lb Capacity) Bearing Kit
