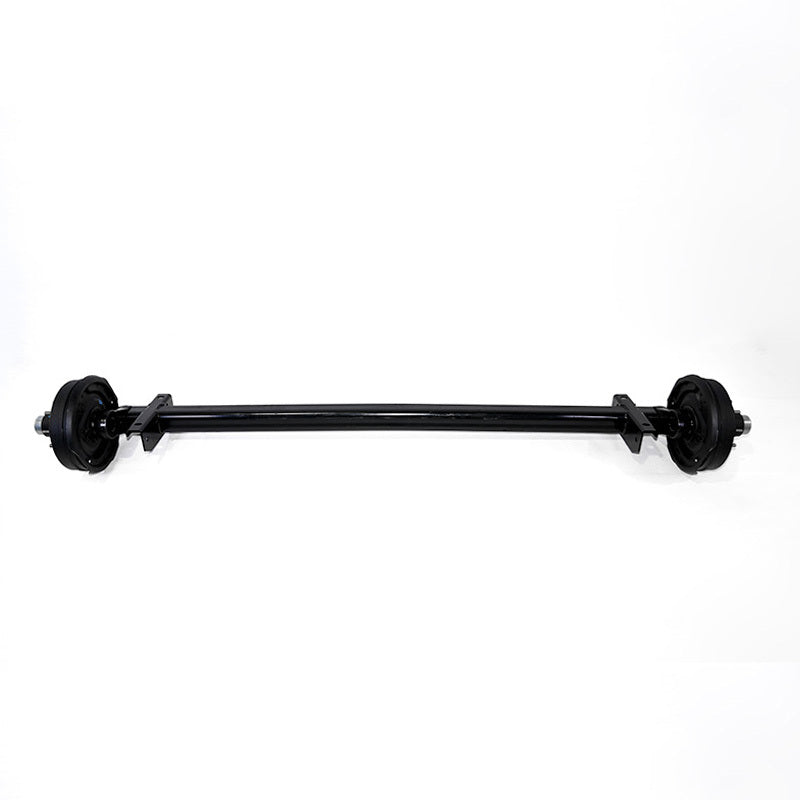

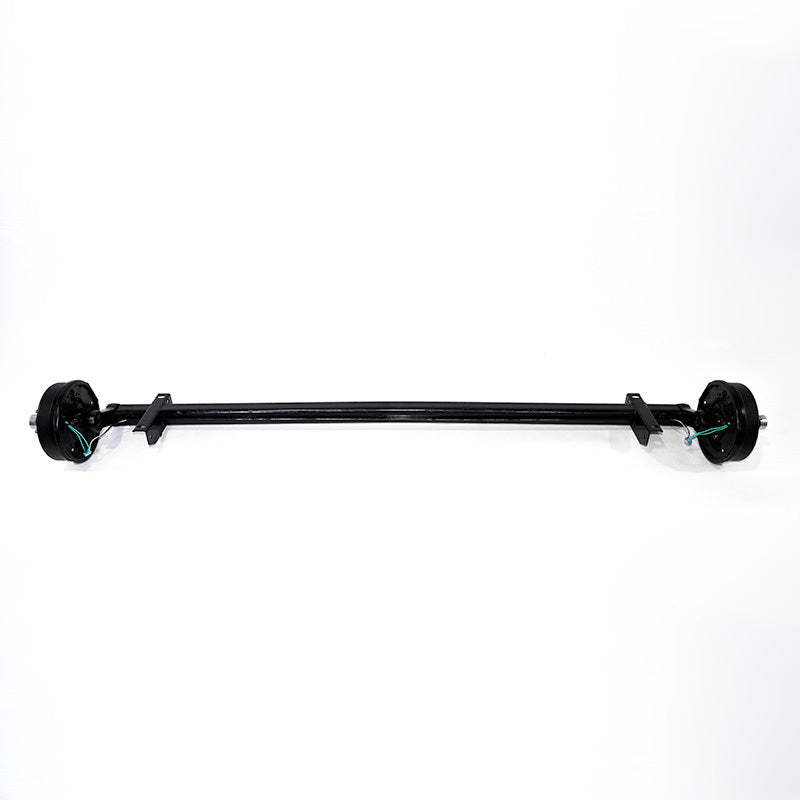

DISCLAIMER: Axle image is just a representation of the axle, it is not exact.

This page is for you to create your own custom torsion axle.

Be sure to select each criteria you want and fill in all blanks. You will see the related upcharge to the bigger axle at that point. Your order can not be processed without this information.

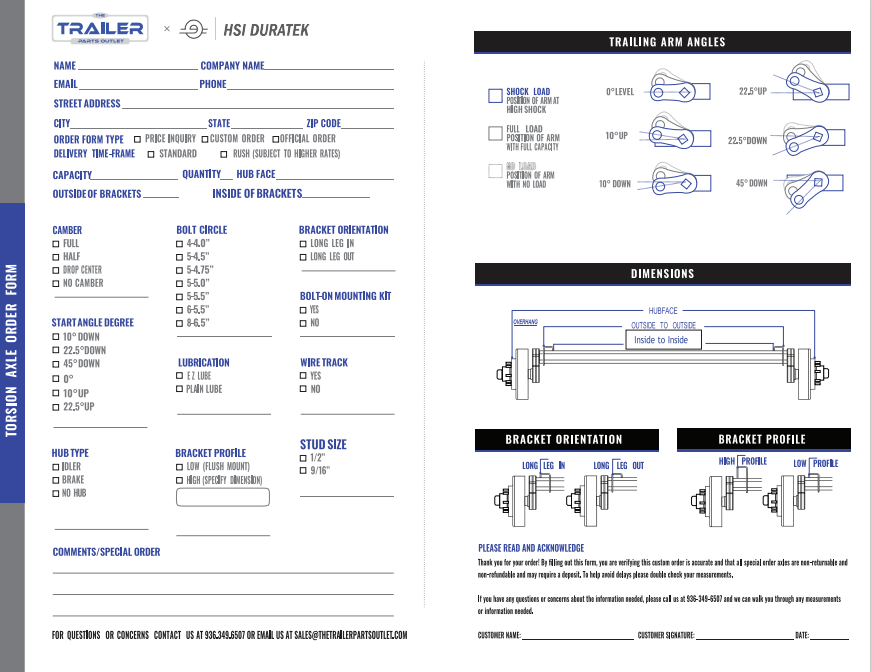

PLEASE CLICK HERE FOR THE COMPLETE TORSION AXLE FORM

If you have any questions, please call the office at 936-349-6507. Our Trailer Parts Experts can help you through the ordering process.

A torsion axle has a 3-4 week manufacture time as it is a completely custom axle.

There is NO RETURNS on this item, and you submitting your order is confirmation of such.

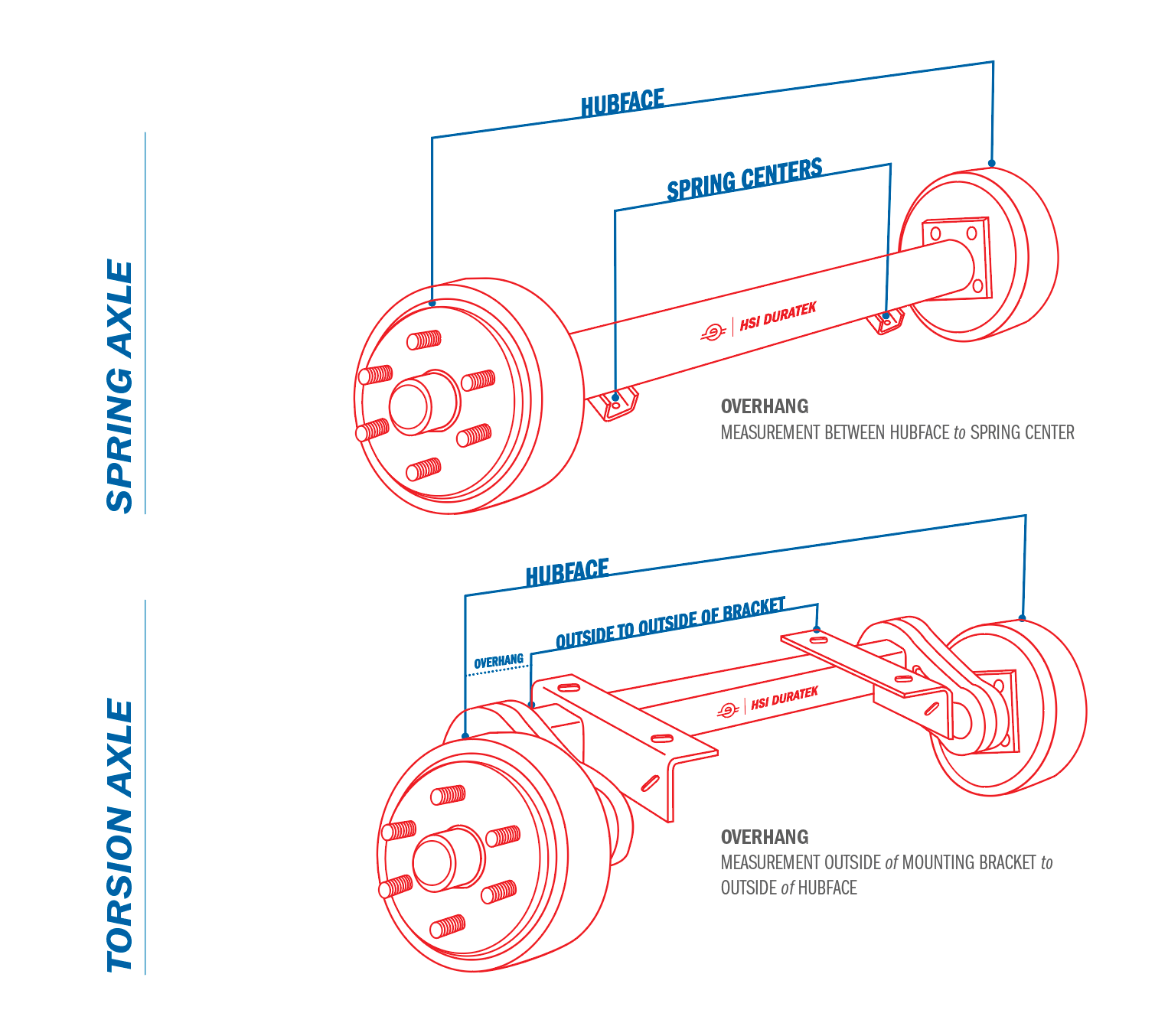

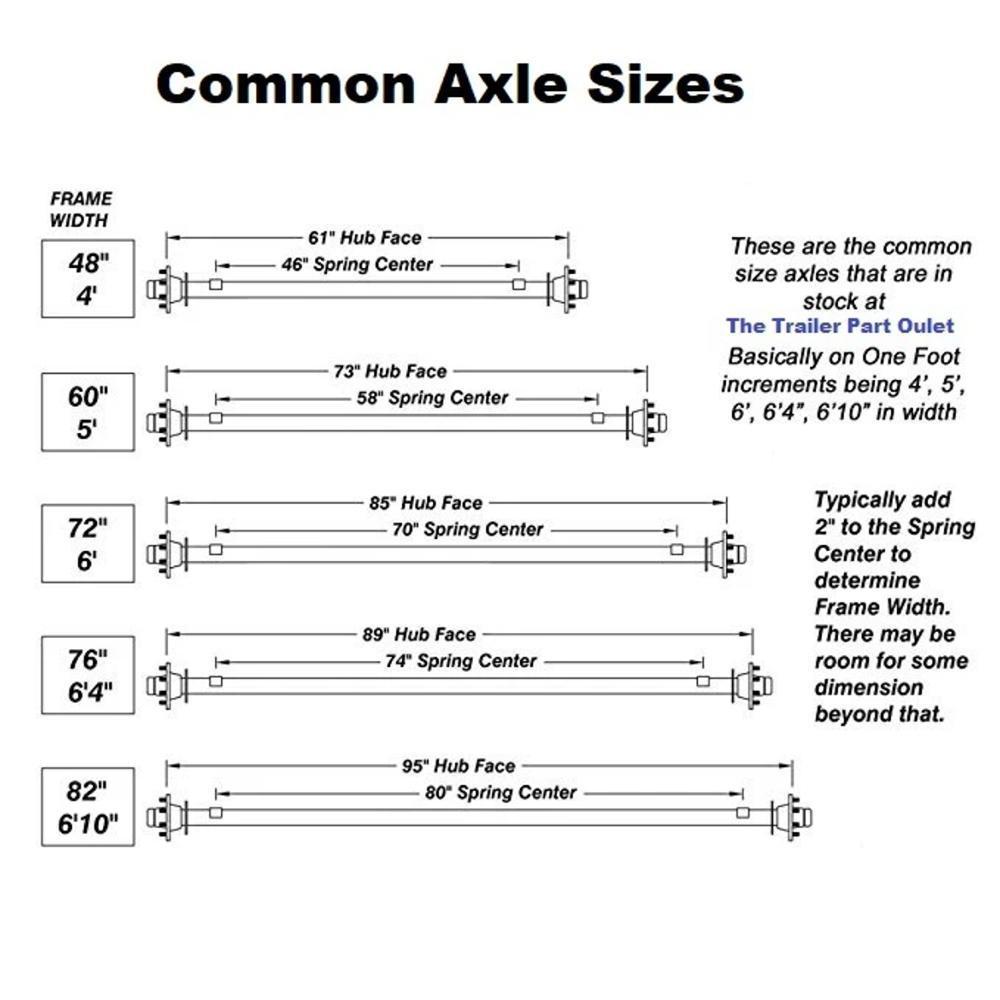

 Here you can determine the Outside Bracket Dimensions. Just measure your axle as it shows below mounting bracket outside to outside. You can also locate your hubface measurement from this image. Your spring center measurement can be measured center of spring to center of spring.

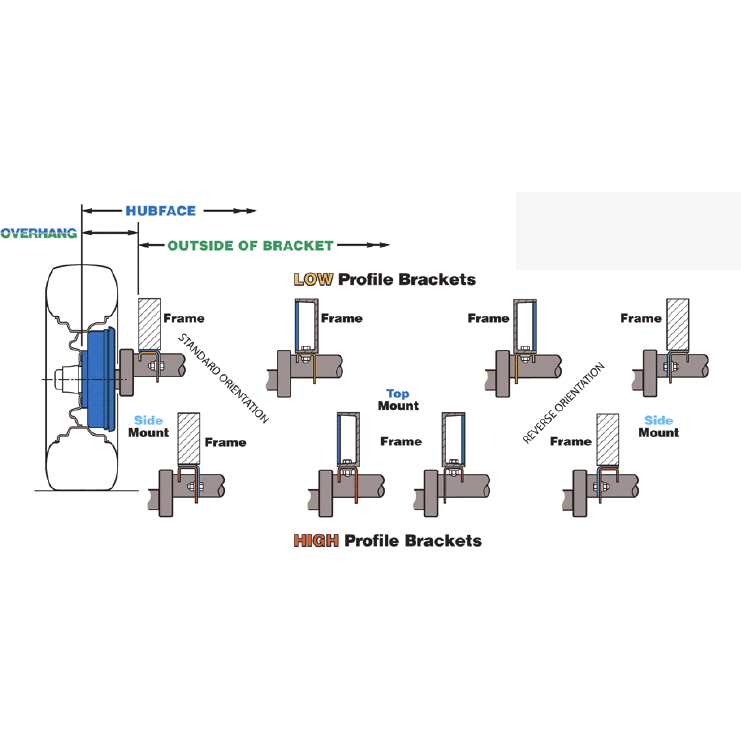

 Here you can determine whether or not you have a high profile, low profile, standard, or reverse bracket.

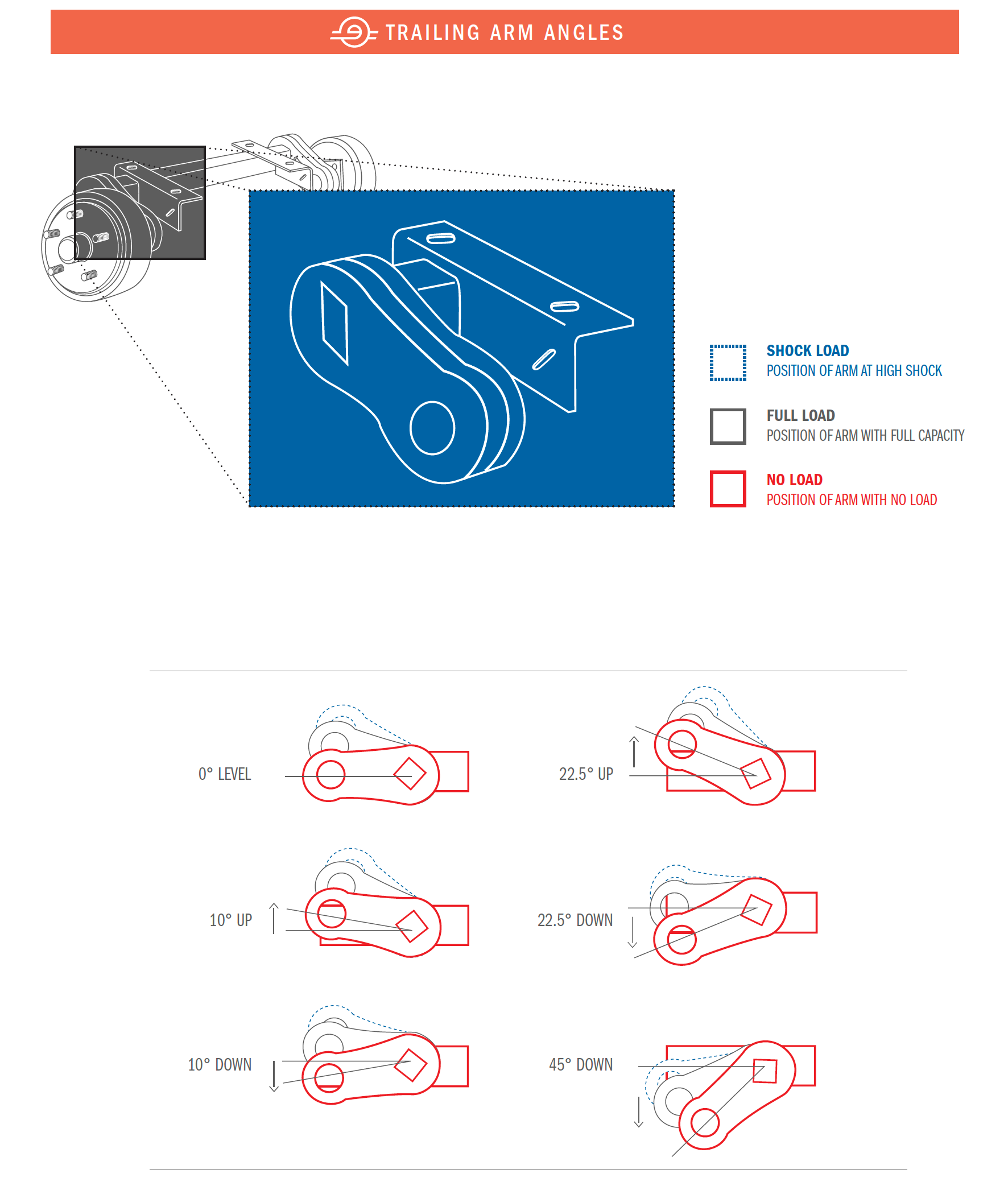

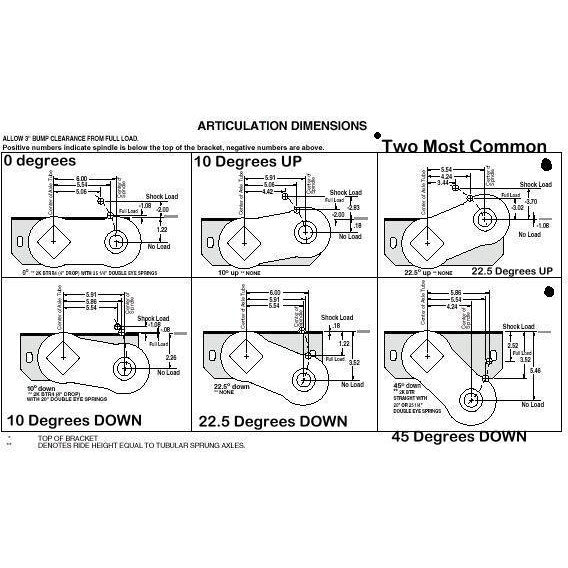

Here is how you retrieve the angle of the bracket. If this picture is not clear, view this image under the image category.
