DIY Trailer Plan - 5232 - Dual Tandem Flatbed Trailer
DIY Trailer Plan - 5232 - Dual Tandem Flatbed Trailer

5232 - 102" x 32' Dual Tandem 24K Flatbed Deckover Trailer DIY Master Plan - 21 How-to Steps w/ Blueprint

5232 - 102" x 32' Dual Tandem 24K Flatbed Deckover Trailer DIY Master Plan - 21 How-to Steps w/ Blueprint

  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Intermediate

Specs:

  • Bed Size: 32'x102"
  • Gross Capacity: 24,000 lbs
  • Empty Weight: 8625 lbs
  • Empty Tongue Weight: 1945 lbs
  • Frame: I-Beam and Channel
  • Deck: Diamond Plate or Wood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

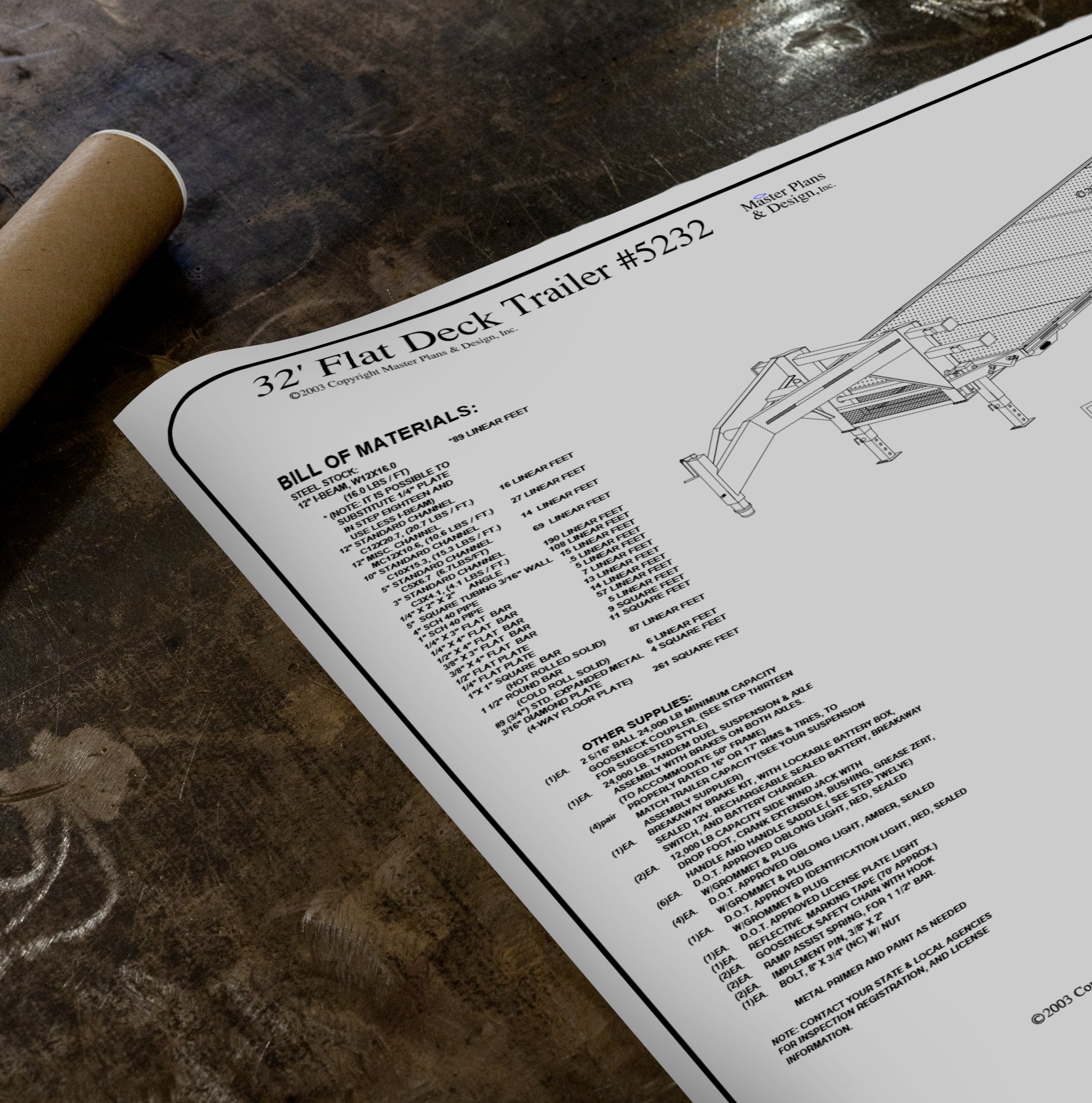

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

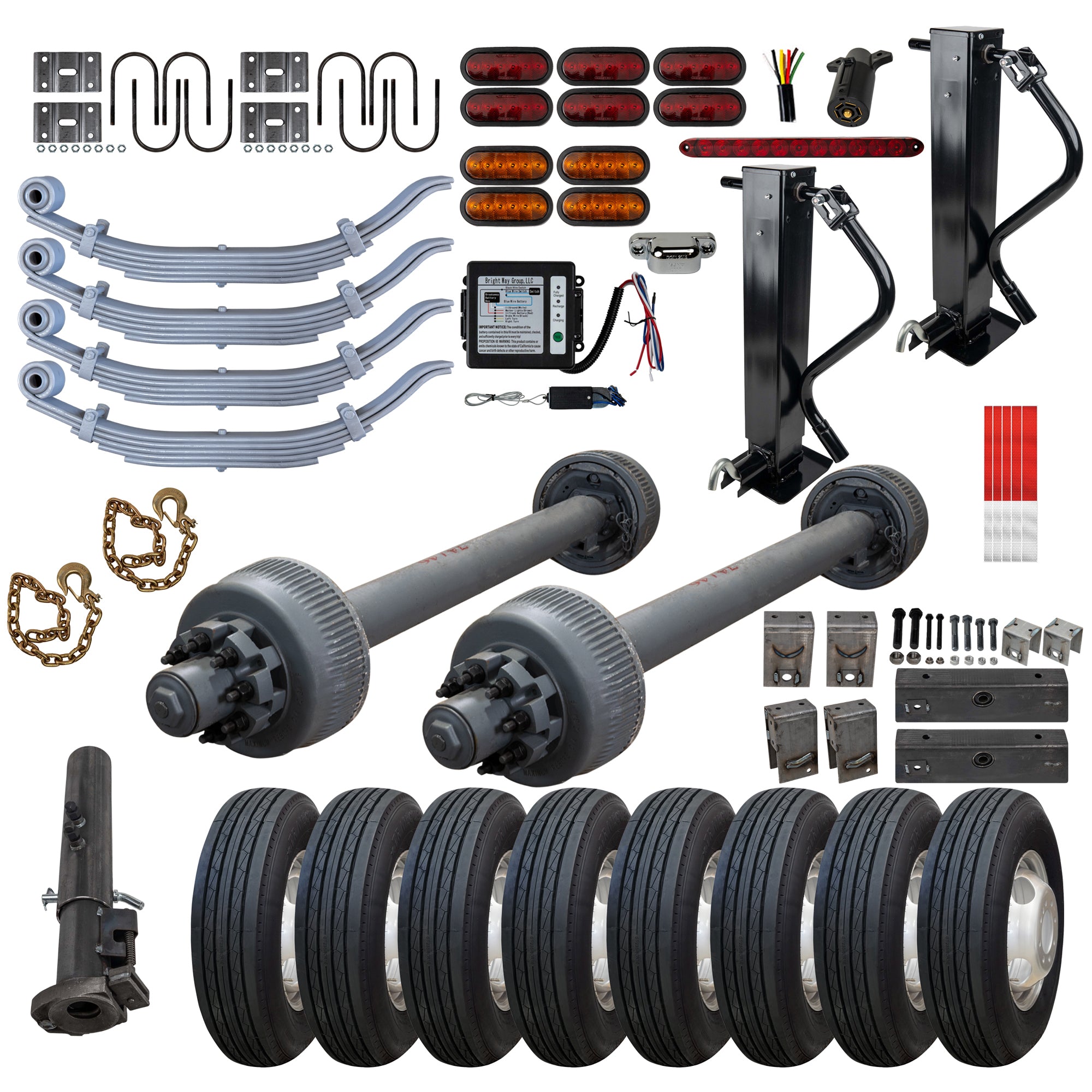

What's Included with Trailer Kit:

  • 2 - 12k Trailer Axle - 12000 lb Electric Brake 8 lug (74/46)
  • 4 - 5 Leaf Trailer Heavy Duty Slipper Spring for 12000 lb Axles
  • 2 - Trailer U-bolt kit for 12000 - 15000 lb Axles
  • 1 - Slipper Tandem Suspension / Hanger Kit for 10k-15k axles
  • 8 - 16" 14 ply Radial TWA - ST 235/80 R16 - 8 lug Dual 4.77 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 25k Gooseneck Coupler - 25000 lb Adjustable Round 2 5/16
  • 2 - Drop Leg 12k Trailer Jack - 12000 lb Front Pin Side Wind
  • 2 - Ram 12k Trailer Jack handle
  • 2 - Ramp Spring LH W/2k Torque For 1 1/2in Shaft
  • 2 - Ramp Spring RH W/2k Torque For 1 1/2in Shaft
  • 6 - Red 6in Oval LED S/T/T Light
  • 4 - Amber 6" Oval LED S/T/T Light
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 10 - Flush Mount Grommet For 6in Oval Lights
  • 10 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 4.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 7 Way Plug
  • 1 - 12 Volt Trailer Breakaway Kit
  • 24 - 18" Reflective DOT Tape Strips
  • 2 - Safety Chain - 3/8 x 39" w/1 Clevis Hook (27.4k Capacity)
  • 1 - 5232 Flatbed Deckover Master Plan Blueprint
