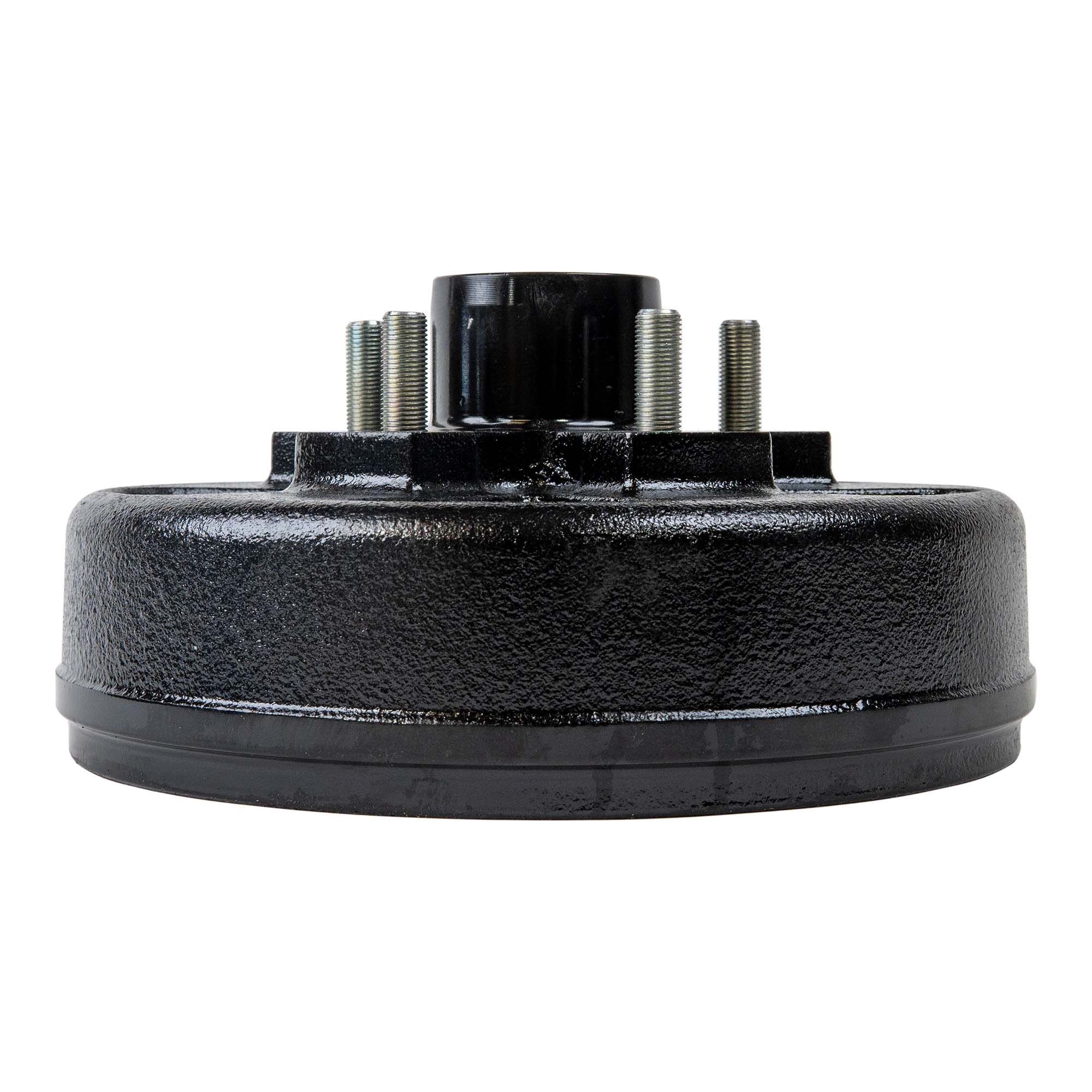

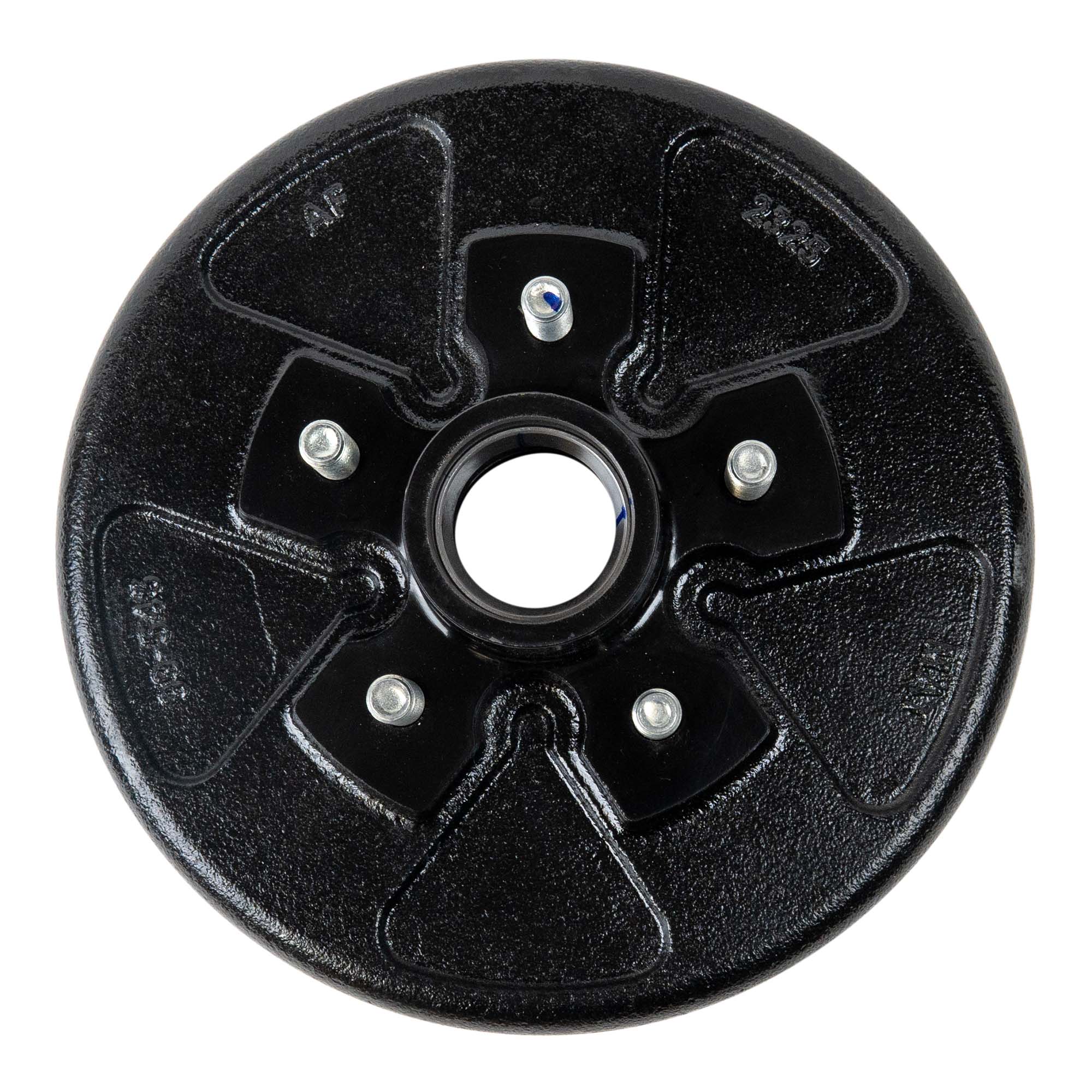

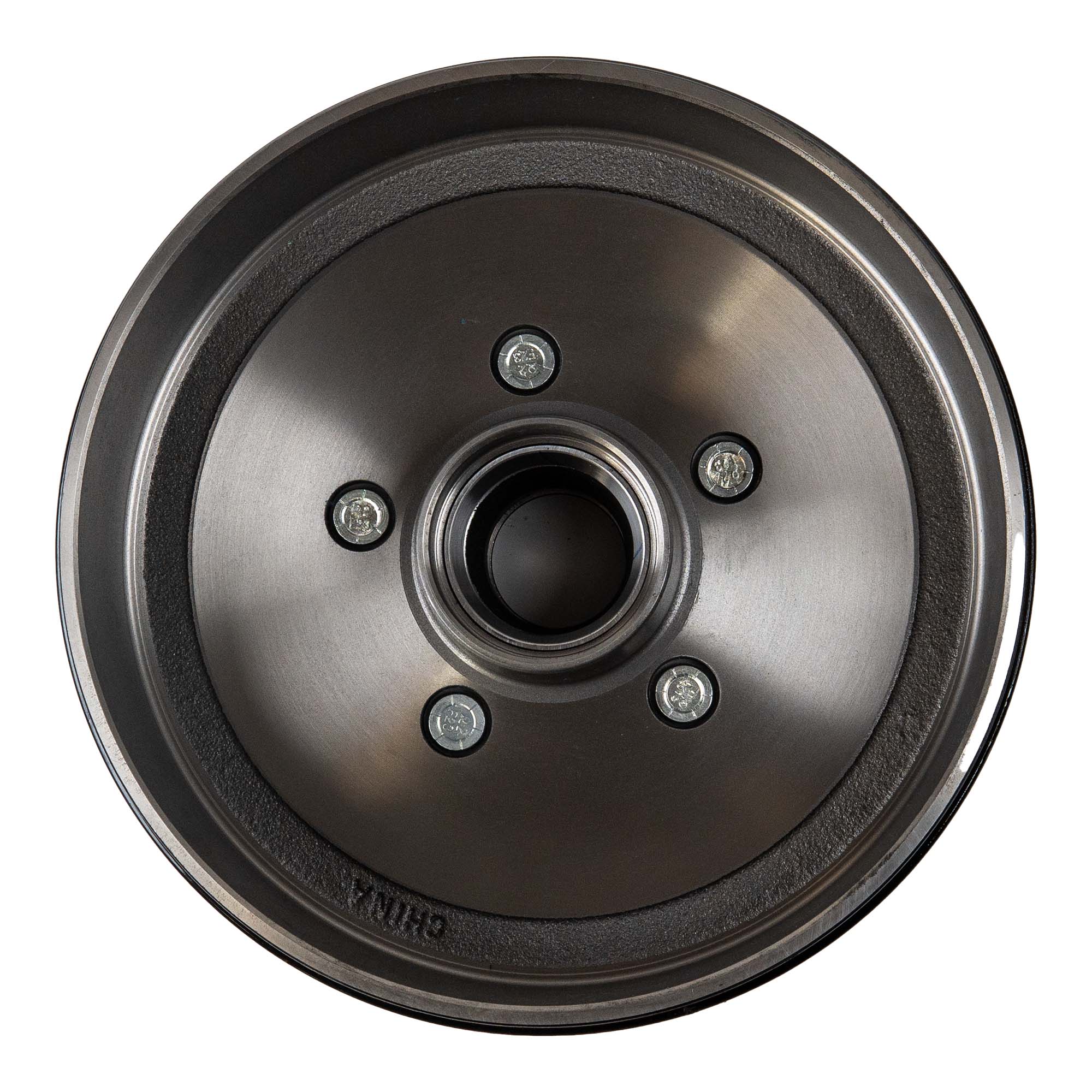

3.5k Trailer Axle Hub and Drum - 5 lug

Skip to product information
1 of 5

3.5k Trailer Axle Hub and Drum - 5 lug

3.5k Trailer Axle Hub and Drum - 5 lug

SKU : 35HUBDRUM545BARETK
Regular price $110 Sale price $73
SAVE 34% (833) 910-3416
4.4
Rated 4.4 out of 5 stars
45 Reviews
Drum Options:
Bolt Pattern:
OR
View full details
3.5k Trailer Axle Hub and Drum - 5 lug - The Trailer Parts Outlet
3.5k Trailer Axle Hub and Drum - 5 lug - The Trailer Parts Outlet

3.5k Trailer Axle Hub and Drum - 5 lug

3.5k Trailer Axle Hub and Drum - 5 lug

Regular price $110 Sale price $73
SAVE 34% (833) 910-3416
4.4
Rated 4.4 out of 5 stars
45 Reviews
  • Product Information
  • Reviews



This hub/drum is compatible with - 3.5k TK Trailer Axle - 3500 lb Electric Brake 5 lug

Hub/Drum Only Specs:

  • 1 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
  • 1 - L44610 Outer Race (Pre-Pressed In Hub/Drum)
  • 1 - L68111 Inner Race (Pre-Pressed In Hub/Drum)
  • Uses L68149 & L44649 bearings (sold separately)
  • 1,750 lb Capacity Per Hub
  • Use with a 10" x 2-1/4" brake

Hub/Drum Assembly Specs:

  • 1 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
  • 1 - 3,500 lb Trailer Axle Bearing Kit
    • 1 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub/Drum)
    • 1 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub/Drum)
    • 1 - L44649 Outer Bearing 1.063" ID
    • 1 - L68149 Inner Bearing 1.378" ID
    • 1 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
    • 1 - 3,500 lb Grease Cap with Plug
    • 1 - Cotter Pin
    • 1 - Spindle Nut Retainer
  • 1 - Grease Tub (1 lb)
  • 5 - Cone Wheel Lug Nuts

TK Service Kit Specs:

Bulk Hub/Drum Specs:

  • 40 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
  • 40 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
  • 40 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)

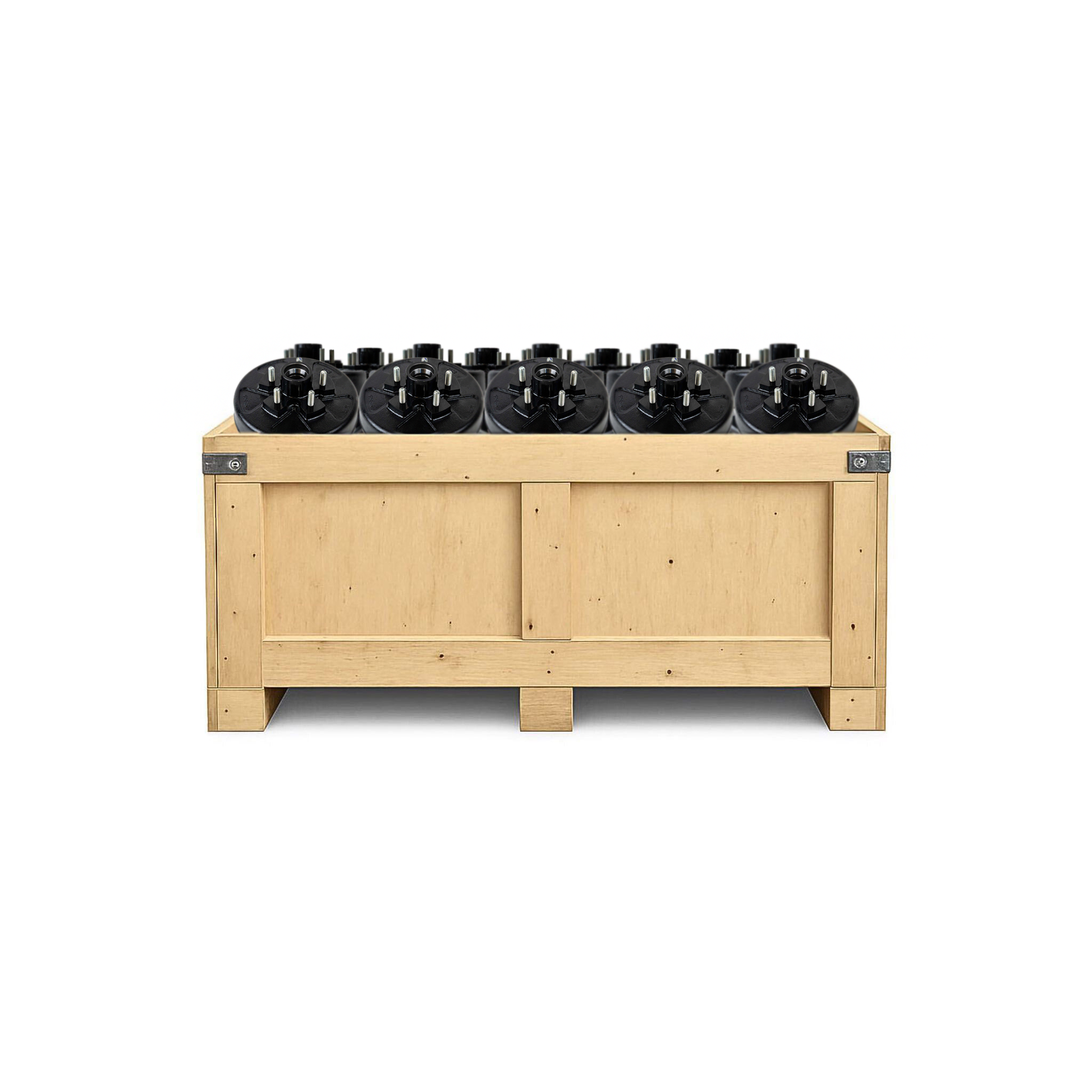

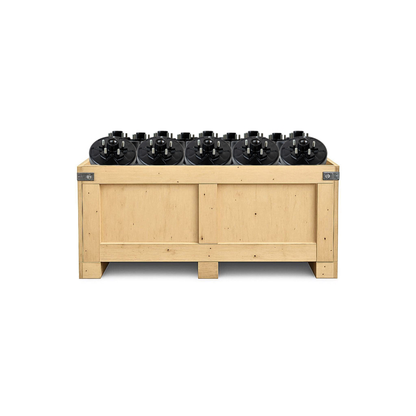

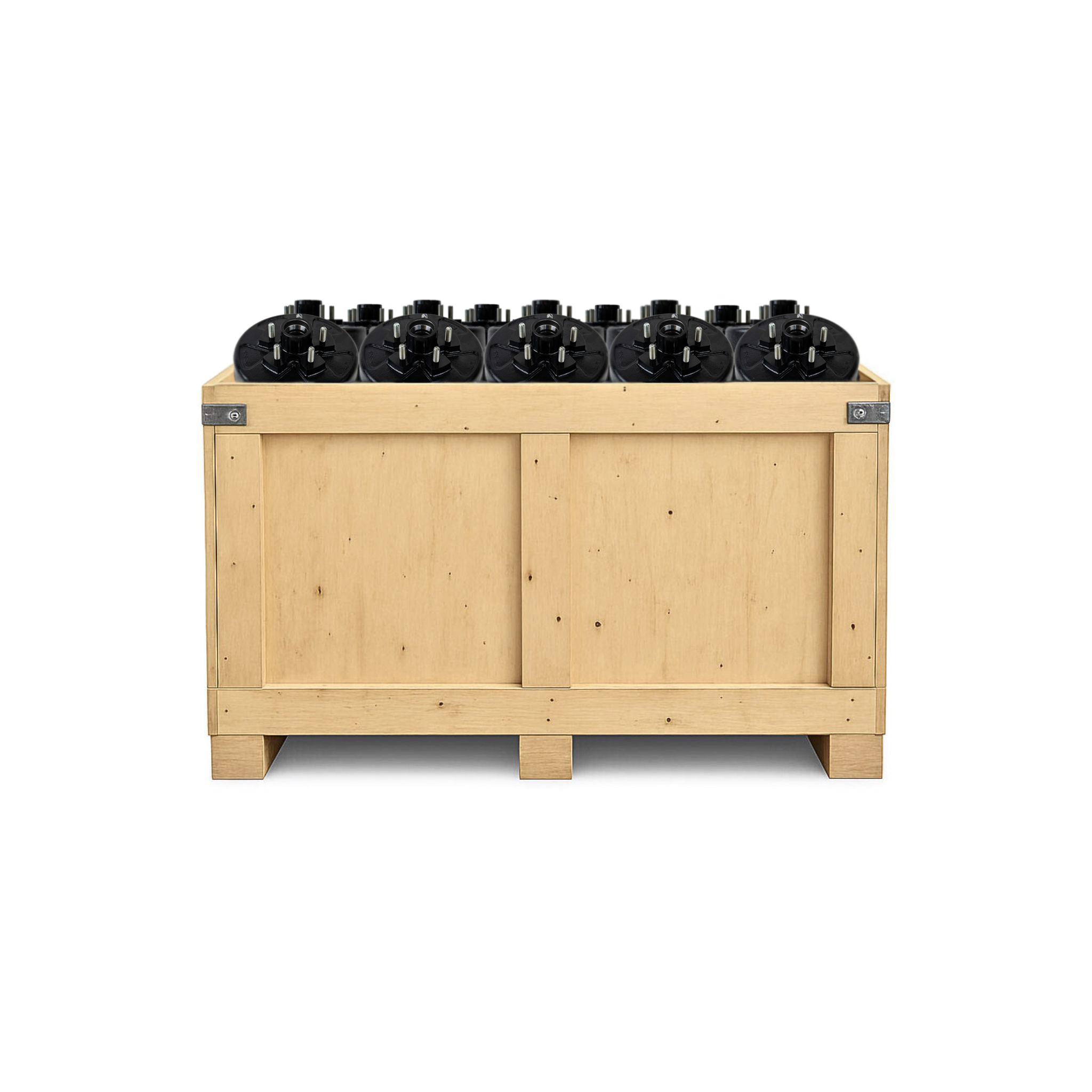

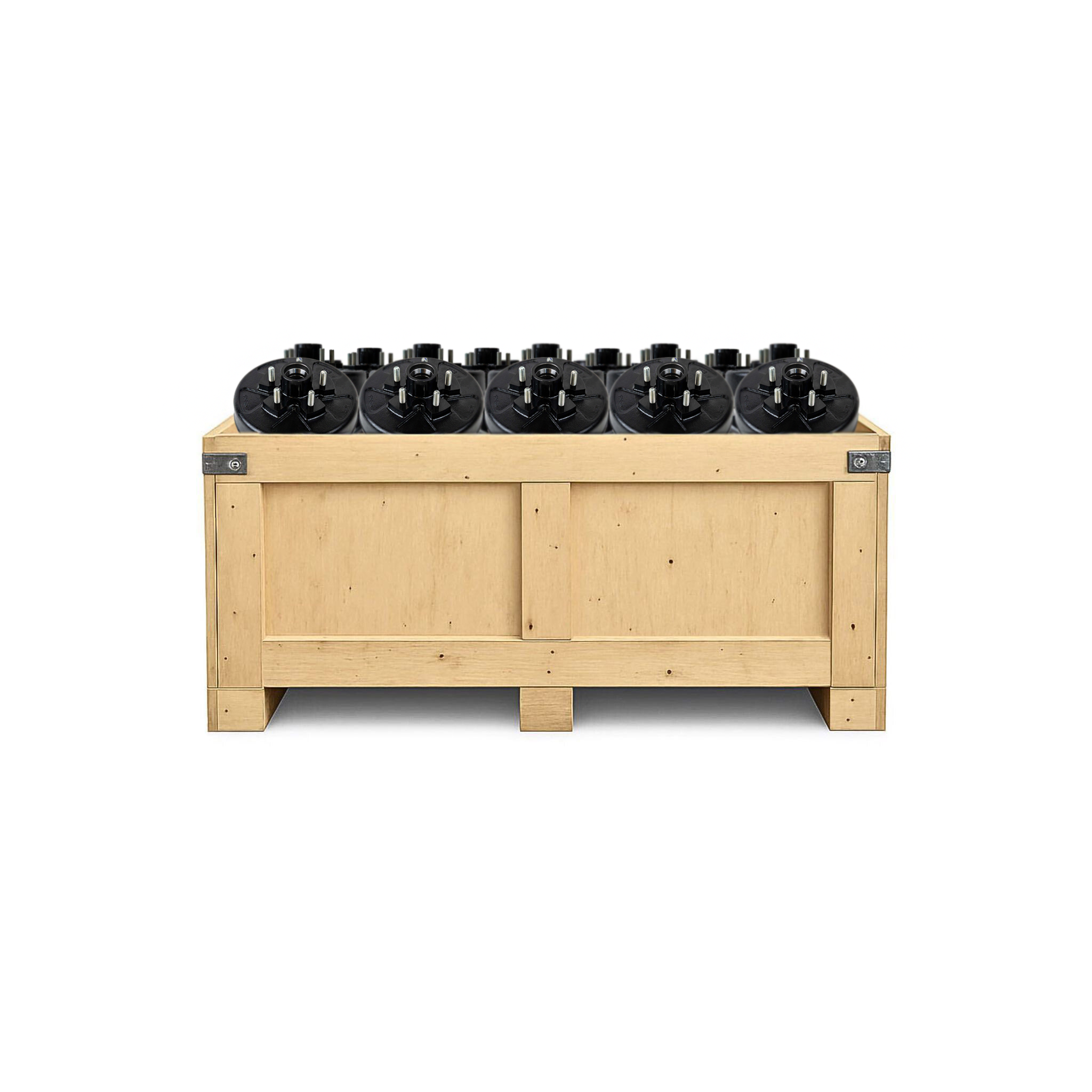

Crate Hub/Drum Specs:

  • 80 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
  • 80 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
  • 80 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)

This 3.5K trailer axle hub and drum assembly features a 5-lug configuration and is compatible with a #84 spindle. It's a great choice for a number of light-duty trailer types, so if you're building or repairing a trailer for your business, then consider this assembly as an ideal option. At TK Trailer Parts, it is our mission to make sure every customer can find the parts they need at prices that fit their budget. Contact us today with any questions you may have, and order your new 3.5K axle hub and drum assembly from our online catalog now!

Features:

  • 10" x 2-1/4" Hub & Drum with 5 on 4.5" Bolt Pattern For 3,500lb Axles
  • Hub & drum comes with races pre-pressed for your convenience
  • This hub & drum uses #84 spindle (sold separately)
  • Each hub has a 1,750 lb capacity
  • The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately
  • Kit with hardware is available
