Specs:

  • Box Size: 19'x82"
  • Gross Capacity: 10,400 lbs
  • Empty Weight: 2563 lbs
  • Empty Tongue Weight: 557 lbs
  • Frame: 5" Channel Steel
  • Deck: Diamond Plate
  • Hydraulic Tilt Car Hauler
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

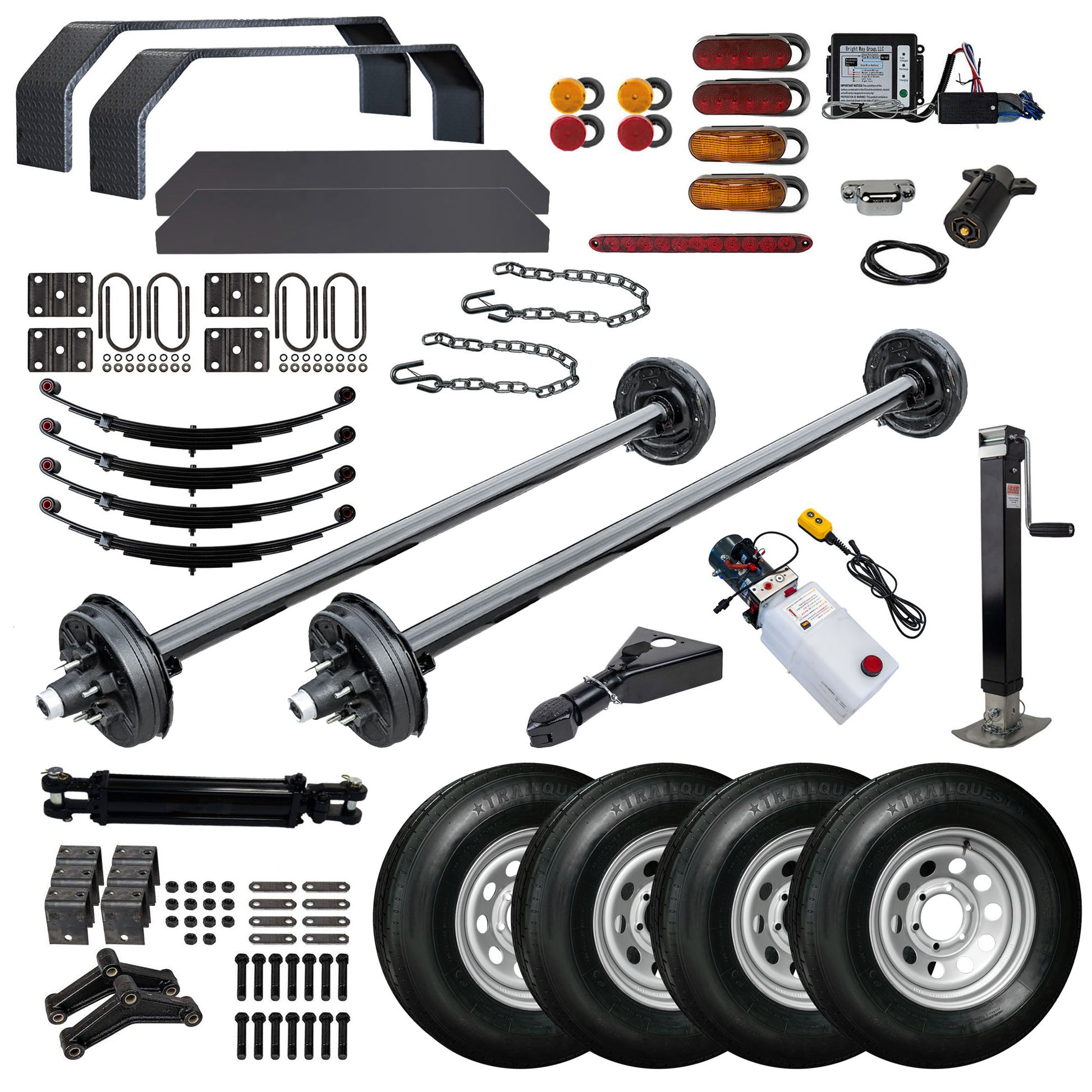

What's Included with Trailer Kit:

  • 2 - 5k 5.2k Trailer Axle - 5000 5200 lb Electric Brake 6 lug (95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 4 - 15" 10 ply Radial TWA - ST 225/75R15 6x5.5 (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 10x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 2 - Red 6in Oval LED S/T/T Light
  • 2 - Amber 6" Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 4 - Flush Mount Grommet For 2in Round Lights
  • 4 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 2 - Silver Safety Chain- 5/16 x 30"-Forged (7.6k Capacity)
  • 2 - Fitting, 1/2 NPT male X #6 SAE male 90 degree
  • 2 - Fitting, #6 SAE male X #6 JIC male 90 degree
  • 2 - Hose assembly, 74" X 3/8 Hyd 4000 PSI
  • 1 - 3.0 x 12 Dump Trailer Hydraulic Cylinder - Tie Rod
  • 1 - Dump KTI Double Acting Hyd Pump (Power Up-Down) w/Remote
  • 1 - 7 Way Plug
  • 3.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 1 - Drop Leg 8K 7K Trailer Jack - 8000 7000 lb Side Wind
  • 1 - 18HT Car Hauler Master Plan Blueprint
