DIY Trailer Plan - 1682BLB - Tandem Axle Utility Trailer
DIY Trailer Plan - 1682BLB - Tandem Axle Utility Trailer

1682BLB - 16' x 82" Tandem Axle 14K Utility Lowboy Trailer DIY Master Plan - 15 How-To Steps w/ Blueprint

1682BLB - 16' x 82" Tandem Axle 14K Utility Lowboy Trailer DIY Master Plan - 15 How-To Steps w/ Blueprint

  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 16'x82"
  • Gross Capacity: 14,000 lbs
  • Empty Weight: 2,030 lbs
  • Empty Tongue Weight: 260 lbs
  • Frame: Angle Steel
  • Deck: Wood
  • Ramps with Rear Pockets
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
  • 16" Wheel and Tire Setup
  • A-Frame Coupler with Drop Leg Jack

 Trailer parts kit specifically made for this plan is available in the option above.

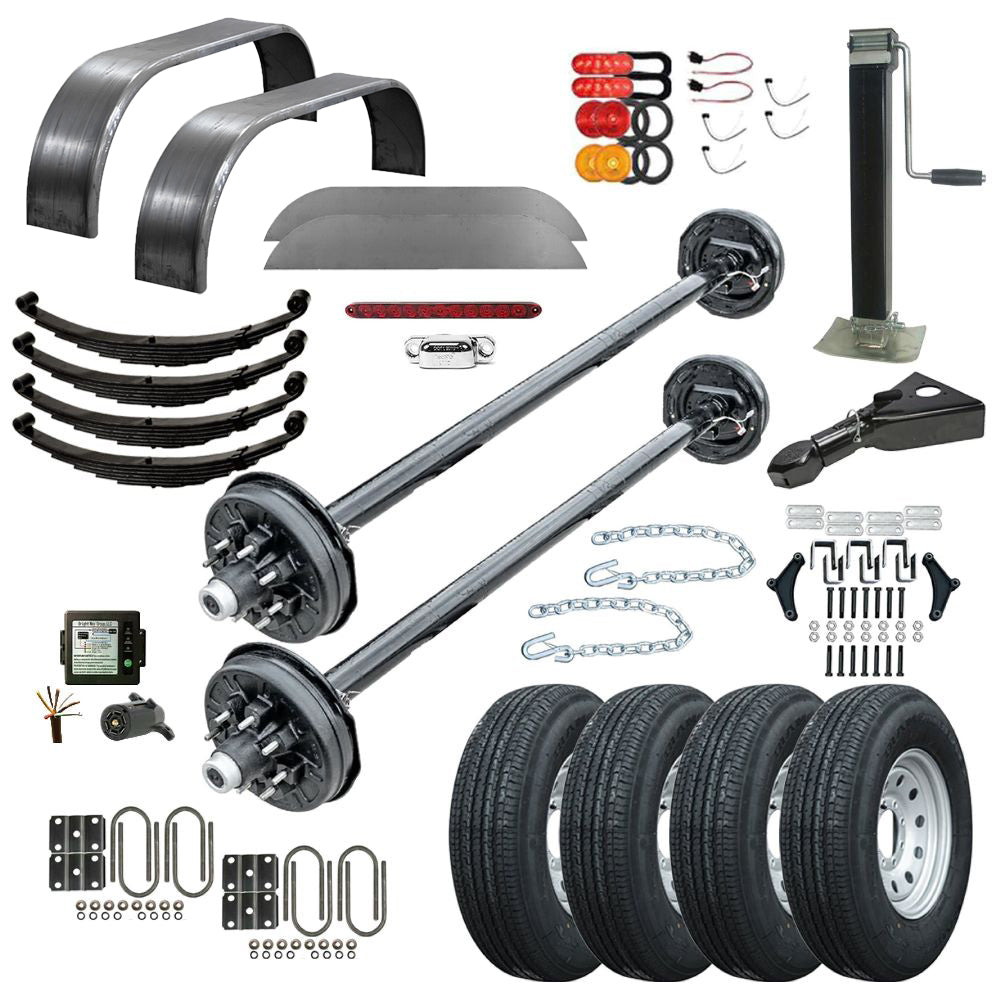

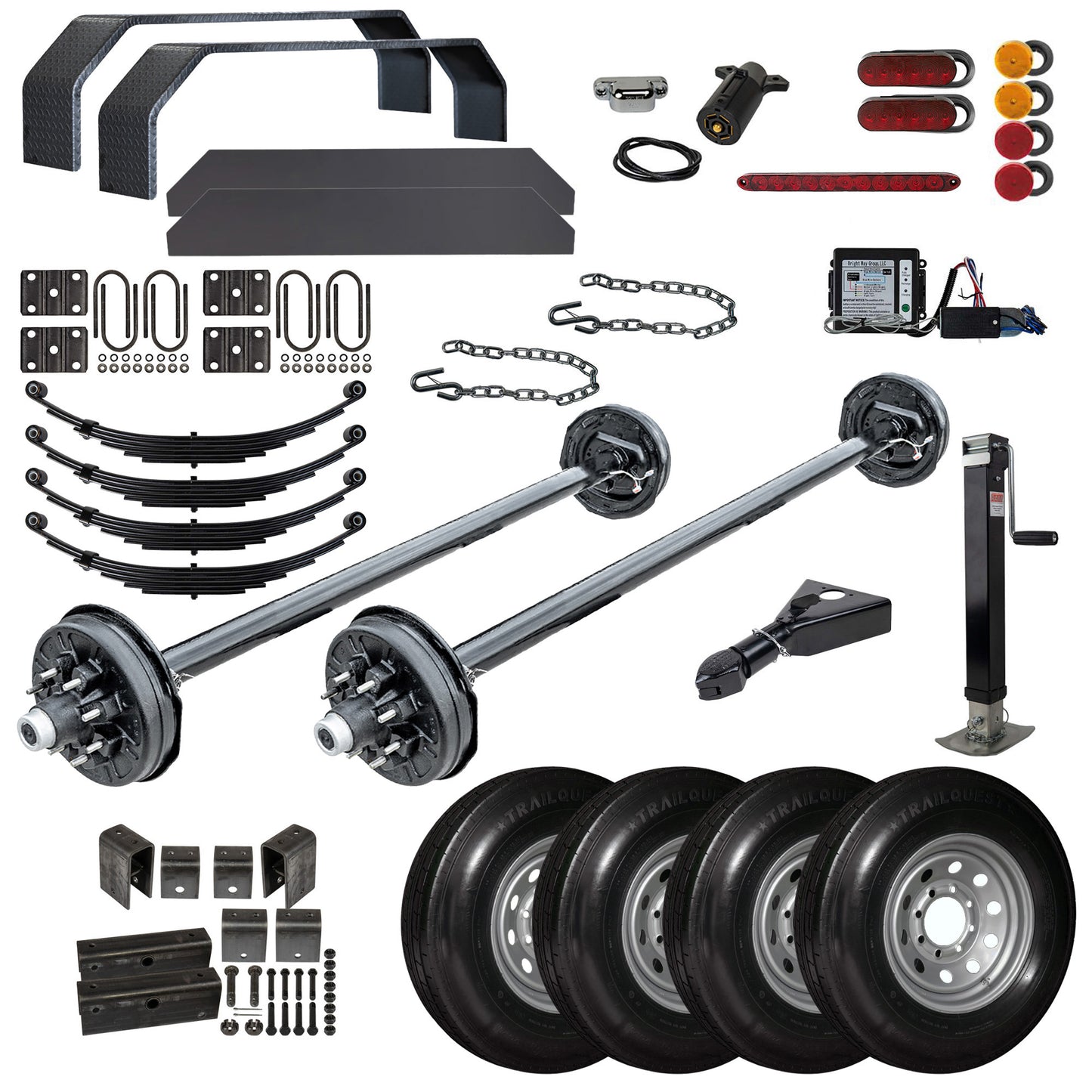

What's Included with Trailer Kit:
  • 2 - 7k Trailer Axle-7000lb Electric Brake8x6.5 1/2 (95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 6 Leaf Trailer Double Eye Spring for 7000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80R16 - 8 lug (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 2 - Red 6in Oval LED S/T/T Light
  • 2 - Flush Mount Grommet For 6in Oval Lights
  • 2 - Pigtail for Led Lights -3 Prong 10"
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 4 - Flush Mount Grommet For 2in Round Lights
  • 4 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.4 -6 way cable 14 gauge (per 10 foot)
  • 2 -Silver Safety Chain-5/16 x 30"-Forged (7.6k Capacity)
  • 1 -12 Volt Trailer Breakaway Kit
  • 2 -Tandem Axle 10x72 Smooth Steel Teardrop Fender
  • 2 -Tandem Axle 9x72 Smooth Fender Back
  • 1 - RAM Drop Leg 8k 7k Trailer Jack - 8000 7000 lb Side Wind
  • 1 - 1682BLB Utility Lowboy Master Plan Blueprint
