  • Product Information
  • How To
  • Reviews

Check out our 15,000 lb Hydraulic Disc Brake Trailer Axle. The Trailer Parts Outlet offers Superior Service and Faster Solutions. We strive to get you back on the Road FAST with fast and free shipping and easy online ordering.

Why Go Hydraulic Disc Brake

  • Increased Brake Power
  • Increased Reliability
  • Better For Going Up and Down Steep Slopes

Trailer Axle Specs:

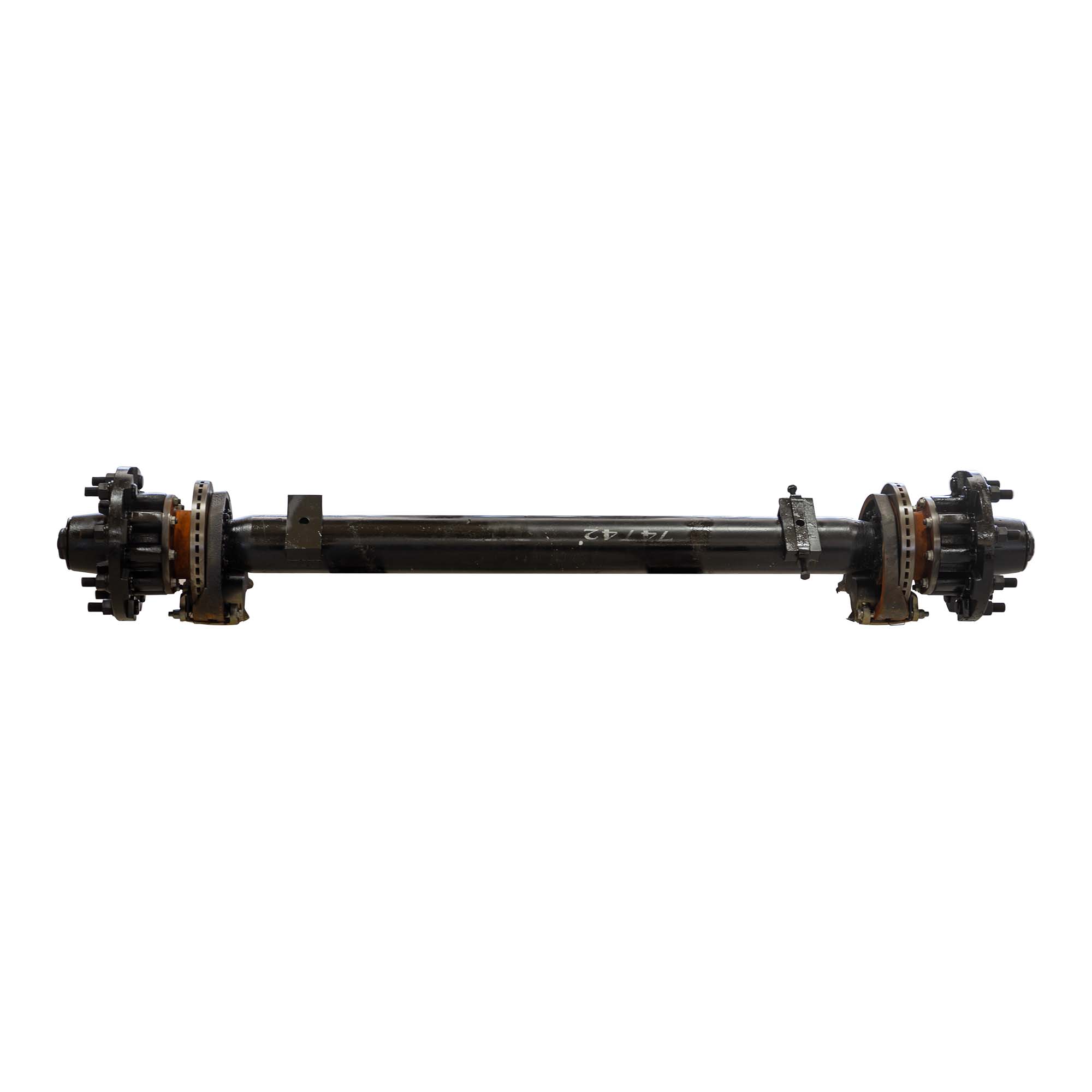

  • 15,000 lb TK Trailer Hydraulic Disc Brake Axle (15K Capacity)
  • Tube: 5"
  • Weight: 678 lbs

Trailer Axle Internal Components:

  • 12-15K (12,000-15,000 Lb Capacity) Bearing Kit (2 sets) - each set includes:
    • Outer Bearing - 28682 2.250" I.D
    • Inner Bearing - 3984 2.625"  I.D
    • Outer Race - 28622 3.844" O.D
    • Inner Race - 3920 4.438" O.D
    • Unitized Grease Seal - 010-056-00 4.506" O.D 3.125" I.D
    • Screw on Grease Cap

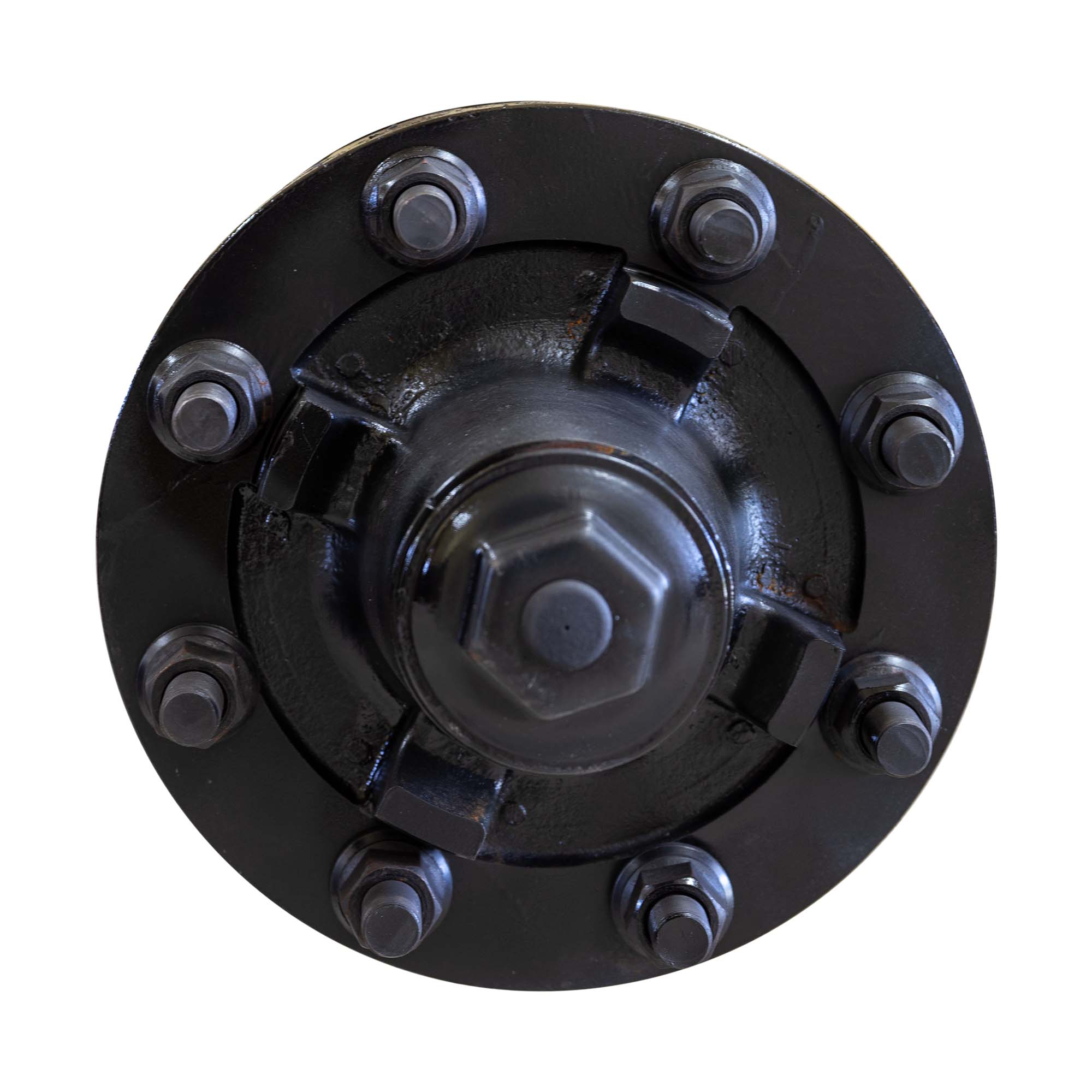

  • 15k Trailer Axle Hub - 8 lug Brake
  • 15k Trailer Axle Studs - 22mm
  • 15k Trailer Axle Brake -Hydraulic Disc Brake Pad Kit

Trailer Axle Features:

  • Axles come fully assembled with high temp grease
  • Underslung - Axle is welded with spring seats on the bottom
    • Allows for lower ride height
  • Designed for replacement of Flatbed Trailer Axles, Car Hauler Trailer Axles, Gooseneck Trailer Axles, Lawn & Landscape Trailer Axles, Dump Trailer Axles & More
  • High Strength Straight Steel 5" Axle Tube Construction

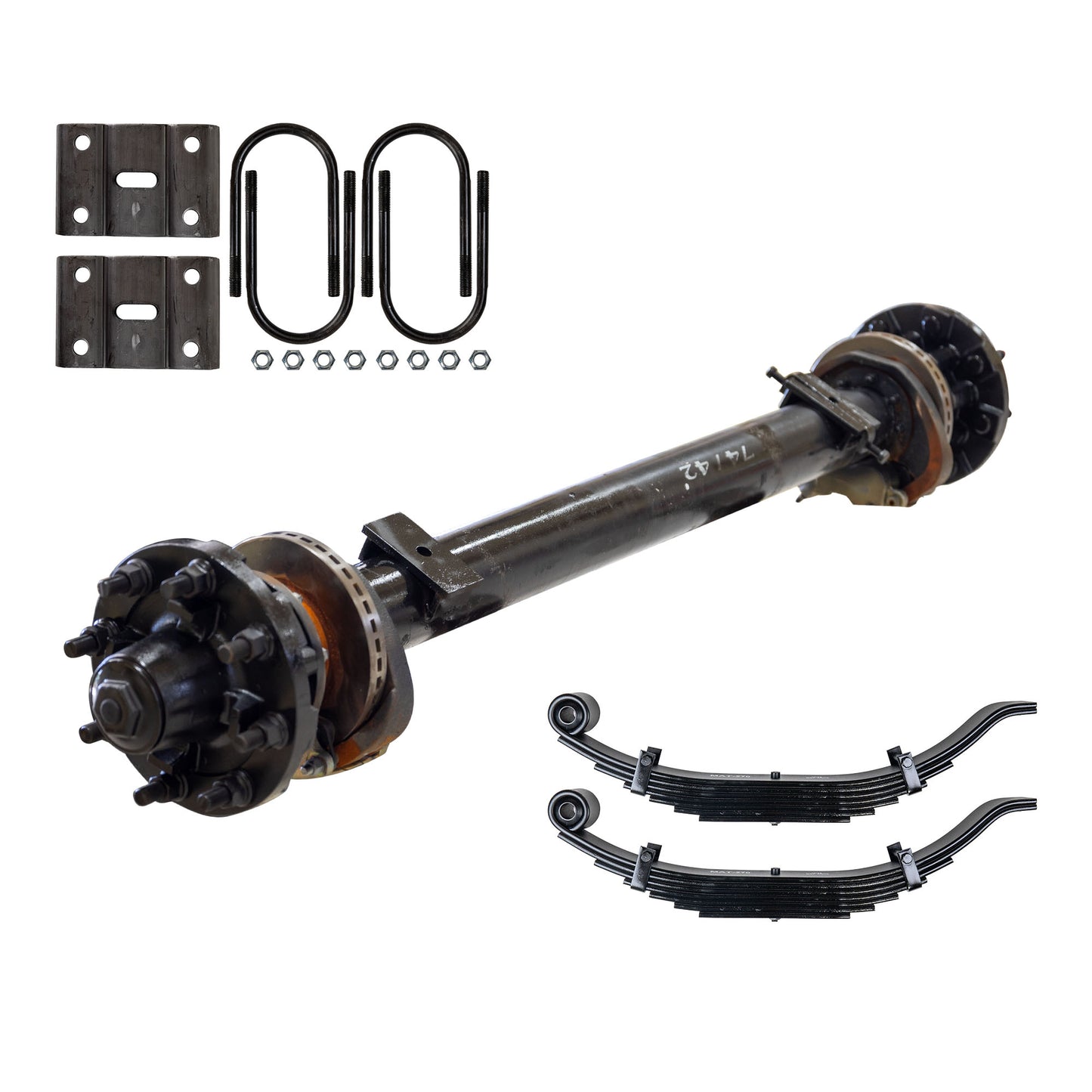

What's Included in the 15,000 lb Axle Kit Option:

  • 1 - TK 15,000 lb Hydraulic Disc Brake Trailer Axle Grease Bath
  • 2 - 7 Leaf 30" x 3" Wide Trailer Axle Slipper Spring for 15,000 - 16,000 lb Trailer Axles
  • 1 - 12,000 - 16,000 lb U-Bolt Kits

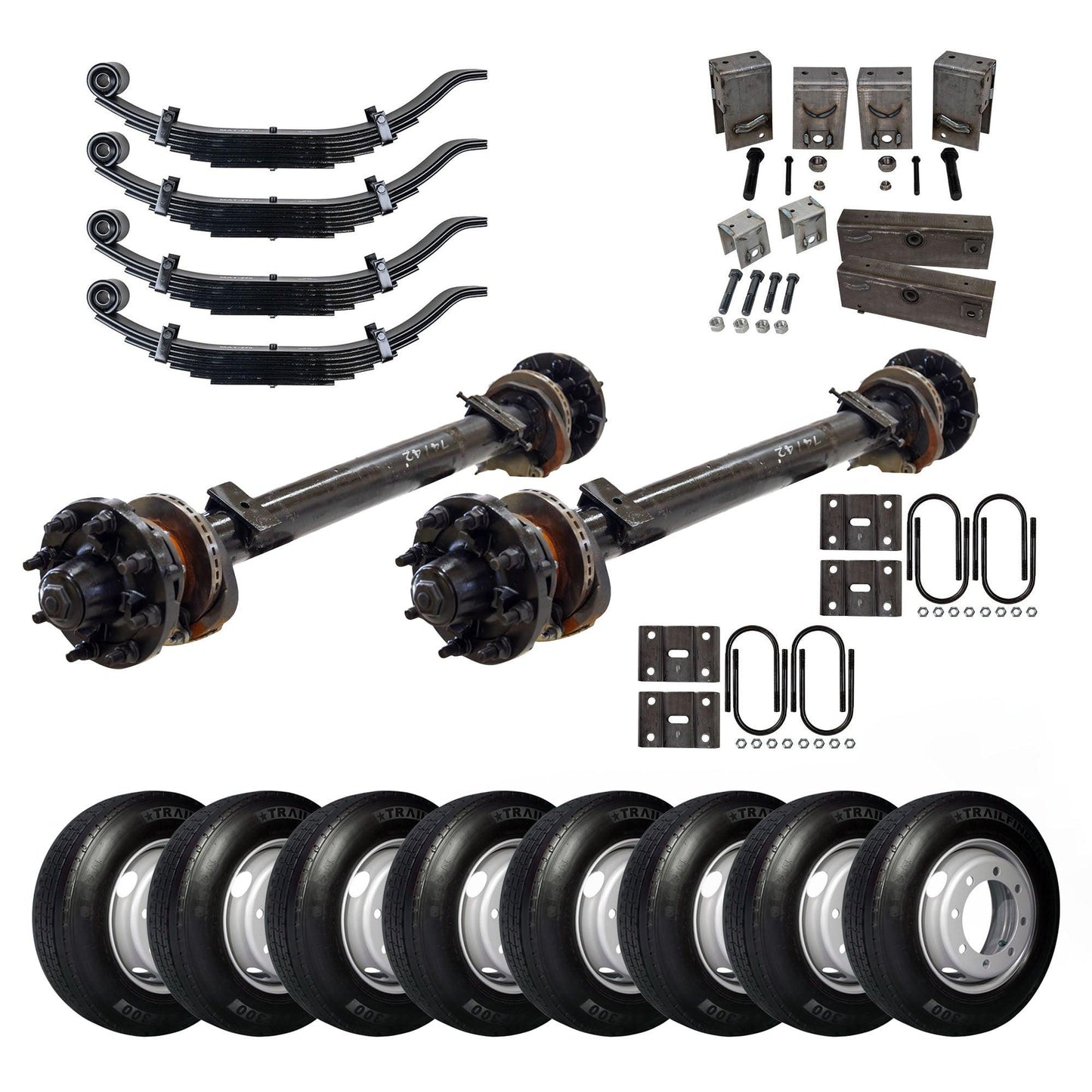

What's Included in the 15,000 lb Trailer Kit Option:

  • 2 - TK 15,000 lb Hydraulic Disc Brake Trailer Axle Grease Bath
  • 4 - 7 Leaf 30" x 3" Wide Trailer Axle Slipper Spring for 15,000 - 16,000 lb Trailer Axles
  • 2 - 12,000 - 16,000 lb U-Bolt Kits
  • 1 - Slipper Tandem Hanger Kit
  • 8 - 17.5" 215/75 R17.5 16 ply Radial Dual TWA (Tire Wheel Assemblies) - Wheel Color: Silver Finish

Benefits of a Grease Bath Trailer Axle

  1. Simplicity: Grease bath axles are simpler in design compared to oil bath axles, which can result in easier maintenance and repair.
  2. Cost-Effective: Grease is generally less expensive than oil, making grease bath axles more cost-effective in terms of lubrication.
  3. Durability: Grease can provide adequate lubrication and protection against wear and tear, contributing to the durability of the axle components.
  4. Sealed System: The sealed housing of a grease bath axle helps prevent contaminants from entering, reducing the risk of damage to the bearings and other components.
  5. Suitable for Lighter Loads: Grease bath axles are often used in lighter-duty applications where the loads and operating conditions are less demanding.
  6. Low Maintenance: Grease bath axles typically require less frequent maintenance compared to oil bath axles, reducing downtime and maintenance costs.
  7. Environmental Friendliness: Grease is less likely to leak and can be disposed of more easily and safely than oil, making it a more environmentally friendly option.

To place a custom axle order, please call (936) 289-3191 and our trailer parts experts will be more than happy to assist you.

how to measure your trailer axle - how to measure bolt patter on a trailer Axle. - how to find your hub face and spring center
