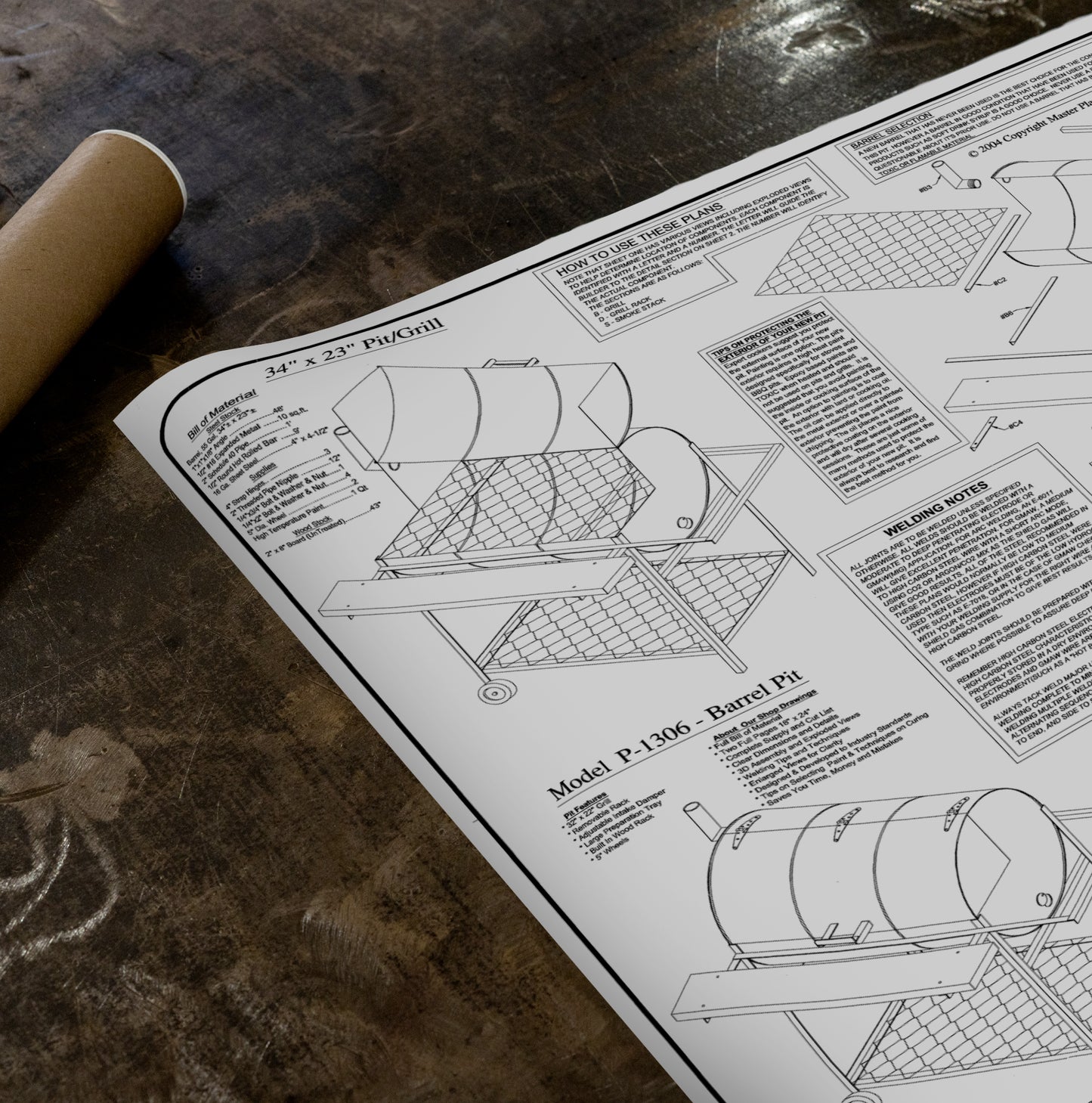

  • Pit & Grill Blueprints
1 2

1306 - Pit & Grill Plan- How-to Steps

1306 - Pit & Grill Plan- How-to Steps

SKU : MP1306PAPER

Online price only

$180

Online price only

SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
58 Reviews
Shipping: Calculated at Checkout
Plan Type:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • Reviews

BBQ Smoker Trailer Plans — 24" × 36" Blueprints | Grill Build Kit | DIY Ready

Build your own professional-grade BBQ smoker trailer with these detailed, engineer-approved plans. Designed for fabricators, shop classes, and DIY builders, this blueprint package provides everything you need to confidently cut, weld, and assemble your smoker. Paired with a tailored TK trailer kit, it ensures you have the right parts to bring your build to life.

Plan Specifications

  • Blueprint size: 24" × 36" full-size prints
  • Grill size: 32" × 22"
  • Smoker features: Adjustable damper, wood rack, removable racks
  • Application: DIY smoker trailer build
  • Usage: Suitable for shop classes, industry, and personal builds

What’s Included

  • Engineer approved and stamped full-size blueprints
  • Detailed cut list for fabrication
  • Complete bill of materials
  • Welding tips and build guidance
  • Tailored TK trailer kit compatibility for required parts

Key Benefits

  • Step-by-step guidance makes fabrication easier and more accurate
  • Full bill of materials ensures you source the right components
  • Designed for both beginners and experienced fabricators
  • Compatible with TK trailer kits for a complete build solution
  • Ideal for educational and professional use

Ideal For

  • DIY trailer builders
  • BBQ enthusiasts building custom smokers
  • High school shop and agricultural classes
  • Fabricators and welding professionals
  • Custom trailer and pit builders

Important Note

No part of these plans may be reproduced, distributed, or transmitted without prior written permission, except where permitted by copyright law. Purchase confirms acceptance of this disclaimer.

Why Buy from The Trailer Parts Outlet?

  • High-quality, engineer-approved trailer plans
  • Complete solutions with compatible trailer kits
  • Fast shipping
  • Expert support to guide your build

Order your BBQ smoker trailer plans today and start building a custom smoker with confidence.

4.2
Rated 4.2 out of 5 stars
Based on 58 reviews
Total 5 star reviews: 39 Total 4 star reviews: 5 Total 3 star reviews: 8 Total 2 star reviews: 1 Total 1 star reviews: 5
Customers Talked About
Slide 1 selected
Write a Review (Opens in a new window)
58 reviews
  • JB
    Jonathan B.
    Verified Buyer
    26 minutes ago
    Rated 5 out of 5 stars
    Awesome Plans! Includes materials list!

    These plans arrive in a sturdy tube, suitable for storage and stacking. Inside, the plans are on thick draft paper.

    Very detailed, including joinery instruction. Haven’t checked on hydraulics yet, so I’m hoping that the cylinder needed is a standard size!

    Will update this review as construction progresses.

    Was this helpful?
  • CM
    Cory M.
    Verified Buyer
    2 weeks ago
    Rated 5 out of 5 stars
    Trailer Plans

    Great plans very detailed and shipped fast

    Was this helpful?
    The Trailer Parts Outlet
    1 week ago

    Great to hear the 26XT Trailer Plans were detailed and shipped fast, Cory! We're thrilled you're happy with the quality and thoroughness of the DIY Master Plan. Thank you for your business and your 5 star review!

    Anna Nicholas
    (936) 935-2186
    The Trailer Parts Outlet

  • FD
    Freancisco D.
    Verified Buyer
    1 month ago
    Rated 5 out of 5 stars
    overall good experience

    The sequence of steps could be improved, and more detailed instructions would be beneficial. Nevertheless, I’m overall satisfied with the experience. I also want to express my sincere gratitude to Kyle for making this culinary adventure truly memorable.

    Was this helpful?
    The Trailer Parts Outlet
    1 month ago

    Great to hear you're overall satisfied with the DIY Master Plan, Francisco! We appreciate your feedback about the step sequence and instructions - it helps us improve our products. Thank you for your business and your 5 star review!

    Anna Nicholas
    (936) 935-2186
    The Trailer Parts Outlet

  • JB
    James B.
    Verified Buyer
    3 months ago
    Rated 5 out of 5 stars
    26xt drawings

    Great drawings

    Was this helpful?
  • TR
    Todd R.
    Verified Buyer
    3 months ago
    Rated 3 out of 5 stars
    Plans are fine

    I work at a high school. My shop students have built numerous trailers using these plans. My only complaint is that even though the bill of materials is listed as a picture, the square footage of plate doesn't tell me what I need to know to get a quote on steel. I need to figure out if a 12" wide piece of 1/4" plate will be sufficient, etc. Most of the time weight is what it is sold for (I can calculate) but in some cases it is the size (width) and if I have it on hand, etc. or do I need to cut out a scrap sheet on our plasma table. I have had to buy plans just to do a quote for a trailer, and about 50% of the time they don't end up having us build it but we bought the plans. Also, since I bought it on a school credit card I have asked for a receipt saying it was paid by credit card 2X, I received a sales order, not a receipt after my initial request. Sent another one today.

    Was this helpful?
