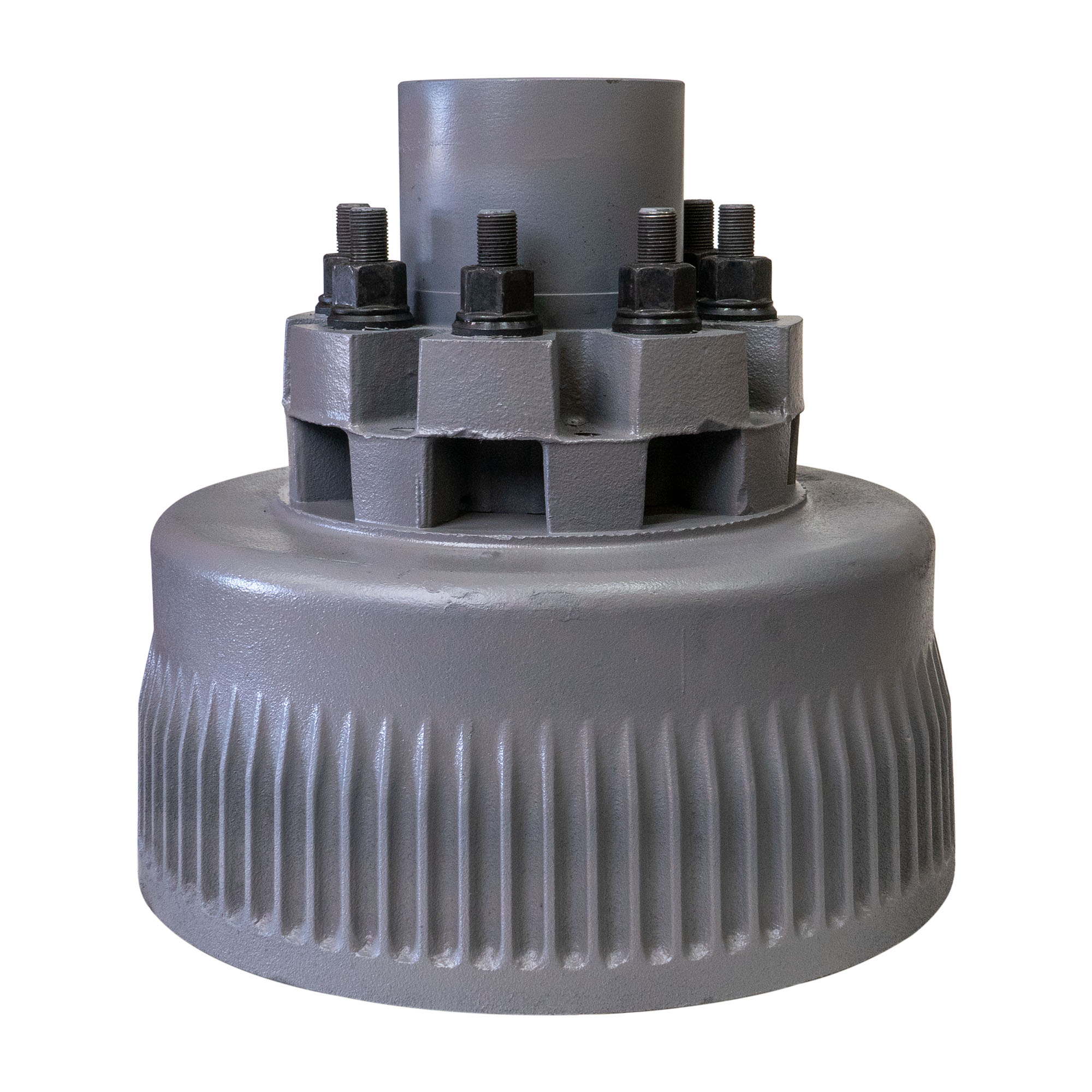

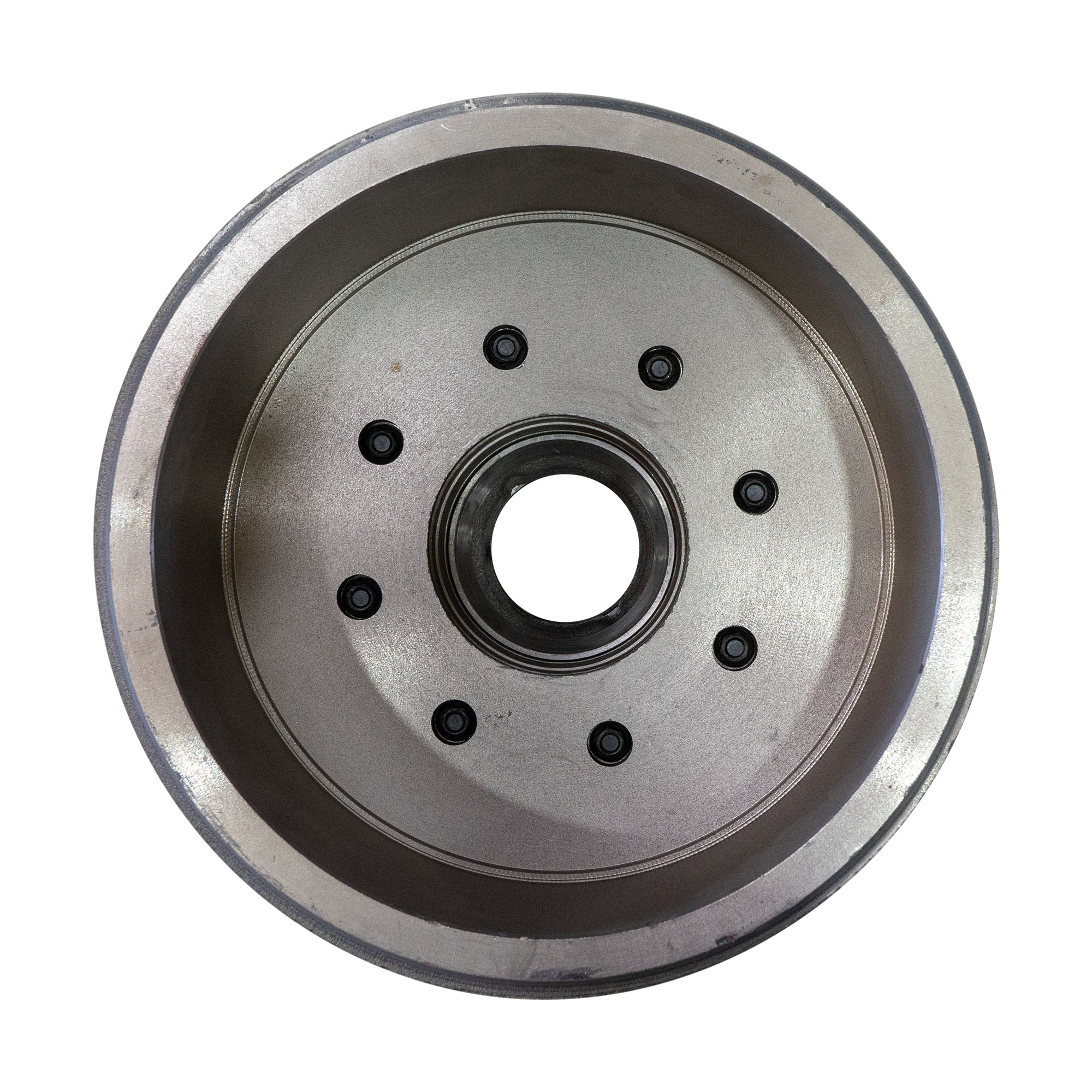

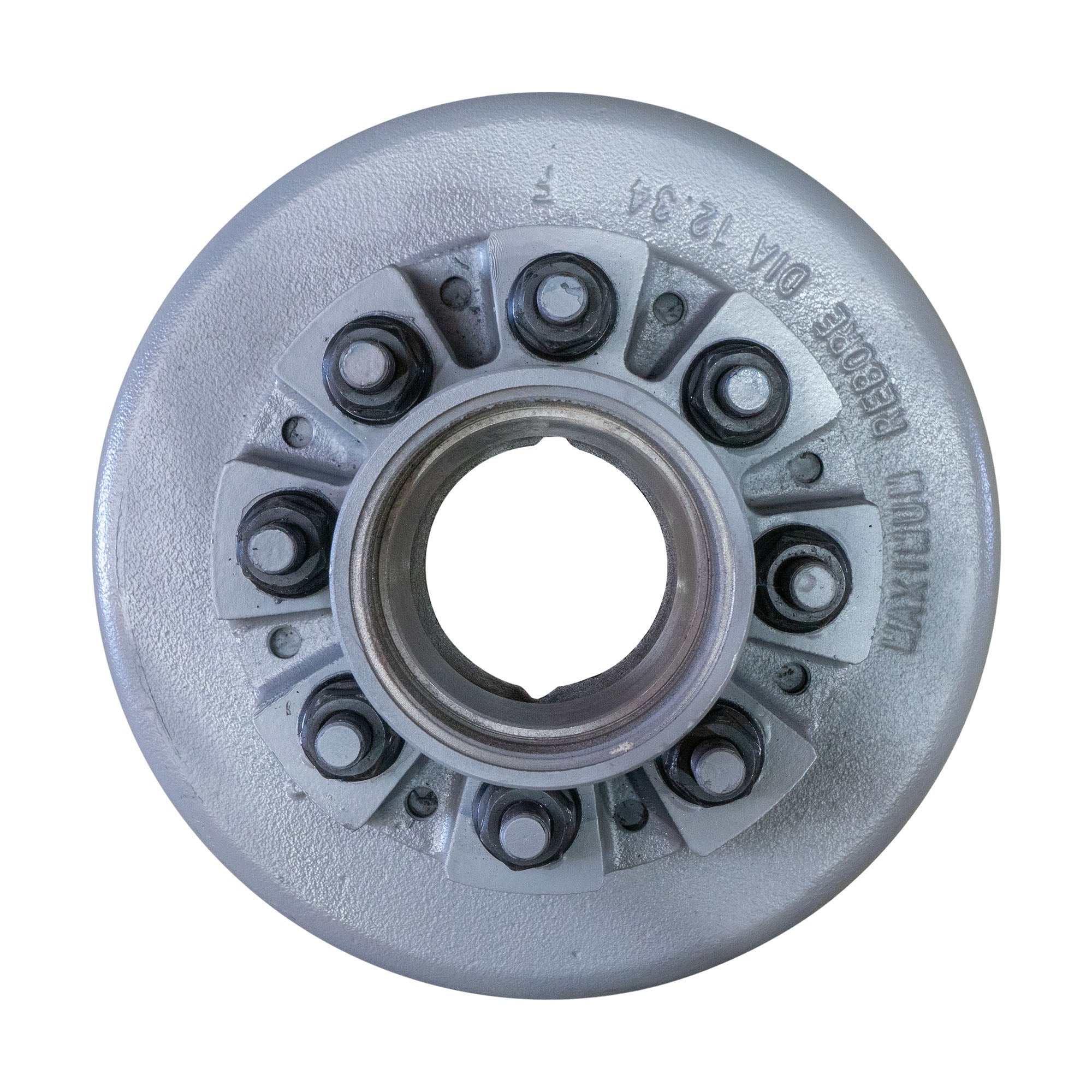

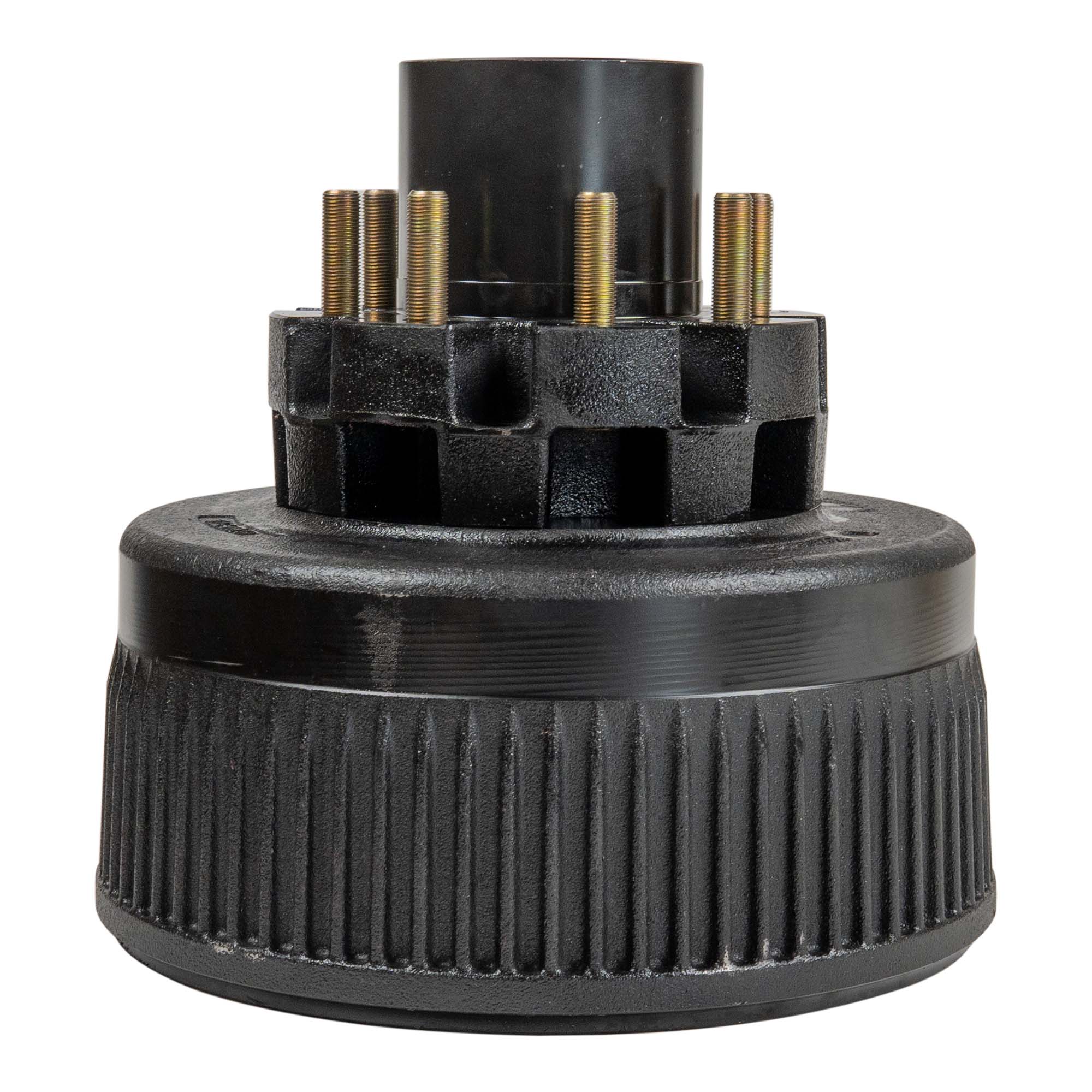

12K TK Axle Hub & Drum - 12000lb Capacity - 8x6.5"

Name: 12K TK Axle Hub & Drum - 12000lb Capacity - 8x6.5"
Brand: The Trailer Parts Outlet
Price: 325.0 CAD
Availability: InStock
Rating: 4.5 (101 reviews)

1 5

12K TK Axle Hub & Drum - 12000lb Capacity - 8x6.5"

SKU : 12HUBDRUM865TK

Online price only

$325

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

101 Reviews

Shipping: Calculated at Checkout

Hub/Drum Options: Variant image

Hub/Drum

Hub/Drum Assembly

Upgrade to TK Service Kit

Bulk Hub/Drums (12 pc)

Crate of Hub/Drums (24)

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

Hub/Drum Only Specs:

Hub/Drum Only
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Fits Most 12K Axles (Dexter, TK, Texas Pride, etc)
This hub & drum can be used with 12,000 lb axles
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - 21-36 Oil Cap
1 - 12-15K Tang Washer
1 - Multi-Purpose Gear Lubricant (1 Quart)
8 - Coned Wheel Nuts
5/8" Wheel Studs

TK Service Kit Specs:

2 - 12K Trailer Axle Hub and Drum 8x6.5
2 - 12k (12,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
2 - Oil Bath Cap and Plug 21-36
16 - Coned Wheel Nuts
2 - 12-15K Tang Washer - 1.75 I.D" x 0.60"
1 - 12k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 12k Trailer Brake Assembly - 12.25"x5" (Passenger Side)
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)

This 12K trailer axle hub & drum is a great choice for heavy-duty axles, and it will fit axles from most of the major manufacturers, including Dexter, TK, and Texas Pride. If you have questions about this product, or you want to be sure that it will fit your trailer axle, then please don't hesitate to contact us. At The Trailer Parts Outlet, we're always happy to help. Order your new 12K trailer axle hub & drum online today!

Features:

Our Hub/Drum has 8 on 6.5" Bolt Pattern for 12k lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 6,000lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Fits Most 12K Axles (Dexter, TK, Texas Pride, etc)
This hub & drum can be used with 12,000 lb axles
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - 21-36 Oil Cap
1 - 12-15K Tang Washer
1 - Multi-Purpose Gear Lubricant (1 Quart)
8 - Coned Wheel Nuts
5/8" Wheel Studs

TK Service Kit Specs:

2 - 12K Trailer Axle Hub and Drum 8x6.5
2 - 12k (12,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
2 - Oil Bath Cap and Plug 21-36
16 - Coned Wheel Nuts
2 - 12-15K Tang Washer - 1.75 I.D" x 0.60"
1 - 12k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 12k Trailer Brake Assembly - 12.25"x5" (Passenger Side)
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)

Features:

Our Hub/Drum has 8 on 6.5" Bolt Pattern for 12k lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 6,000lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Fits Most 12K Axles (Dexter, TK, Texas Pride, etc)
This hub & drum can be used with 12,000 lb axles
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - 21-36 Oil Cap
1 - 12-15K Tang Washer
1 - Multi-Purpose Gear Lubricant (1 Quart)
8 - Coned Wheel Nuts
5/8" Wheel Studs

TK Service Kit Specs:

2 - 12K Trailer Axle Hub and Drum 8x6.5
2 - 12k (12,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
2 - Oil Bath Cap and Plug 21-36
16 - Coned Wheel Nuts
2 - 12-15K Tang Washer - 1.75 I.D" x 0.60"
1 - 12k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 12k Trailer Brake Assembly - 12.25"x5" (Passenger Side)
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)

Features:

Our Hub/Drum has 8 on 6.5" Bolt Pattern for 12k lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 6,000lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Fits Most 12K Axles (Dexter, TK, Texas Pride, etc)
This hub & drum can be used with 12,000 lb axles
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - 21-36 Oil Cap
1 - 12-15K Tang Washer
1 - Multi-Purpose Gear Lubricant (1 Quart)
8 - Coned Wheel Nuts
5/8" Wheel Studs

TK Service Kit Specs:

2 - 12K Trailer Axle Hub and Drum 8x6.5
2 - 12k (12,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
2 - Oil Bath Cap and Plug 21-36
16 - Coned Wheel Nuts
2 - 12-15K Tang Washer - 1.75 I.D" x 0.60"
1 - 12k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 12k Trailer Brake Assembly - 12.25"x5" (Passenger Side)
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)

Features:

Our Hub/Drum has 8 on 6.5" Bolt Pattern for 12k lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 6,000lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Fits Most 12K Axles (Dexter, TK, Texas Pride, etc)
This hub & drum can be used with 12,000 lb axles
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 6.5" Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - 21-36 Oil Cap
1 - 12-15K Tang Washer
1 - Multi-Purpose Gear Lubricant (1 Quart)
8 - Coned Wheel Nuts
5/8" Wheel Studs

TK Service Kit Specs:

2 - 12K Trailer Axle Hub and Drum 8x6.5
2 - 12k (12,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
2 - Oil Bath Cap and Plug 21-36
16 - Coned Wheel Nuts
2 - 12-15K Tang Washer - 1.75 I.D" x 0.60"
1 - 12k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 12k Trailer Brake Assembly - 12.25"x5" (Passenger Side)
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)

Features:

Our Hub/Drum has 8 on 6.5" Bolt Pattern for 12k lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 6,000lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
5/8" Wheel Studs
This hub/drum is NOT COMPATIBLE with Rockwell Axles

4.5

Rated 4.5 out of 5 stars

Based on 101 reviews

Total 5 star reviews: 82 Total 4 star reviews: 5 Total 3 star reviews: 5 Total 2 star reviews: 2 Total 1 star reviews: 7

Customers Talked About

Slide 1 selected

Write a Review (Opens in a new window)

101 reviews

Sort

BL
Barry L.
Verified Buyer
5 days ago
Rated 5 out of 5 stars
Replacing hydraulic brakes
Parts went together and works nicely.
Was this helpful?
The Trailer Parts Outlet
14 hours ago
Great to hear the 3.5k Trailer Axle Hub and Drum went together smoothly and is working nicely for replacing your hydraulic brakes, Barry! We're thrilled the parts fit perfectly and are performing well for your needs. Thank you for your business and your 5 star review!

Anna Nicholas
(936) 935-2186
The Trailer Parts Outlet
RH
Rick H.
Verified Buyer
2 weeks ago
Rated 4 out of 5 stars
trailer bake replacement kit
This kit is economical and has just about everything. I only wish they included the 7 bolts that holds the brake assembly on. the existing ones get weathered a lot and can be in poor condition.
Was this helpful?
The Trailer Parts Outlet
1 week ago
Hi Rick,

Thank you for the 4-star review and for taking the time to share your feedback. We're glad to hear that the 10K GD Trailer Axle Hub and Drum kit is economical and has just about everything you need. We appreciate you pointing out that the 7 bolts for the brake assembly aren't included, especially since the existing ones can get weathered and deteriorate over time. We'll definitely take this feedback into consideration for future kit improvements.

Anna Nicholas
936-935-2186 The Trailer Parts Outlet
PR
phillip r.
Verified Buyer
2 weeks ago
Rated 5 out of 5 stars
found out too late
Part are very good and as I was finishing I noticed the axels are bent, my fault that I found it late, o well time to spent more money and make it wright.
Was this helpful?
The Trailer Parts Outlet
1 week ago
Hi Phillip,

Thank you for the 5-star review and for taking the time to share your feedback. We're glad to hear that the 3.5k Trailer Axle Hub and Drum parts were very good quality. We're sorry to hear about the issue with the bent axles that you discovered later in the process. We understand how frustrating that can be when you're in the middle of a project. We appreciate your honest feedback and hope everything works out well with getting it all sorted.

Anna Nicholas
936-935-2186 The Trailer Parts Outlet
MM
Martin M.
Verified Buyer
1 month ago
Rated 5 out of 5 stars
Hubs
Perfect fit!
Was this helpful?
CP
Charles P.
Verified Buyer
1 month ago
Rated 5 out of 5 stars
Dexter hub
They always do a great job and make sure you get the right parts
Was this helpful?
