10k General Duty 12.25"x3.375" Trailer Axle Electric Brake Assembly - 10000 lb Capacity - Right Hand (Passenger Side)

Name: 10k General Duty 12.25"x3.375" Trailer Axle Electric Brake Assembly - 10000 lb Capacity - Right Hand (Passenger Side)
Brand: TK Trailer Parts
SKU: 10RHBRKAS
Price: 128.0 CAD
Availability: InStock

1 3

10k General Duty 12.25"x3.375" Trailer Axle Electric Brake Assembly - 10000 lb Capacity - Right Hand (Passenger Side)

SKU : 10RHBRKAS

Online price only

$128

Online price only

SAVE 0% (833) 910-3416

4.6

Rated 4.6 out of 5 stars

129 Reviews

Shipping: Calculated at Checkout

Tax Exempt? Enter info in cart when you're done shopping.

Brake Options: Variant image

Single

Right/Left Pair

Kit (Right & Left Side)

Package (Right & Left Side)

Bulk (20 Right & 20 Left)

Crate (40 Right & 40 Left)

Product variants

Quantity

View full details

Product Information
Reviews

Single Specs:

12.25" x 3.375" Electric Brake Assembly
1 - Passenger Side Assembly
7 Bolt Brake Flange
Rated at 10,000 lbs per pair
This brake is NOT COMPATIBLE with Rockwell Axles

Pair Specs:

12.25" x 3.375" Electric Brake Assembly
1 - Driver Side Assembly
1 - Passenger Side Assembly
7 Bolt Brake Flange
Rated at 10,000 lbs per pair

Kit Specs:

1 - Driver Side Assembly 12.25" x 3.375"
1 - Passenger Side Assembly 12.25" x 3.375"
1 - One Quart Jug of Axle Oil
2 - Unitized Oil Seal - 010-051-00 3.880" O.D 2.875" I.D
2 - 25580 Outer Bearing 1.750" I.D
2 - 387A Inner Bearing 2.250" I.D
2 - 25520 Outer Race 3.265" O.D
2 - 382A Inner Race 3.813" O.D

Package Specs: (New Style 10k)

2 - 9-10K Trailer Axle Hub/Drum 8x6.5 - Dexter General Duty (New Style)
2 - 10k (10,000 lb Capacity) Bearing Kit
- 2 - 25580 Outer Bearing 1.750" I.D
- 2 - 387A Inner Bearing 2.250" I.D
- 2 - 25520 Outer Race 3.265" O.D (Pre-Pressed In Hub)
- 2 - 382A Inner Race 3.813" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal-010-051-00 3.880" O.D 2.875" I.D
2 - Oil Bath Cap and Plug 21-88
16 - Cone Wheel Lug Nuts
2 - 9-10K GD Tang Washer - 1.50" I.D. x 0.60"
1 - One Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 9-10k General Duty Trailer Axle Brake - 12.25" x 3.375" - Left Hand (Driver Side)
1 - 9-10k General Duty Trailer Axle Brake - 12.25" x 3.375" - Right Hand (Passenger Side)
This Hub/Drum replaces Dexter single piece 8-415 (axles built between 7/2009 and 5/2013)

Bulk Specs:

20 - Driver Side Assembly 12.25" x 3.375"
20 - Passenger Side Assembly 12.25" x 3.375"

Crate Specs:

40 - Driver Side Assembly 12.25" x 3.375"
40 - Passenger Side Assembly 12.25" x 3.375"

Features:

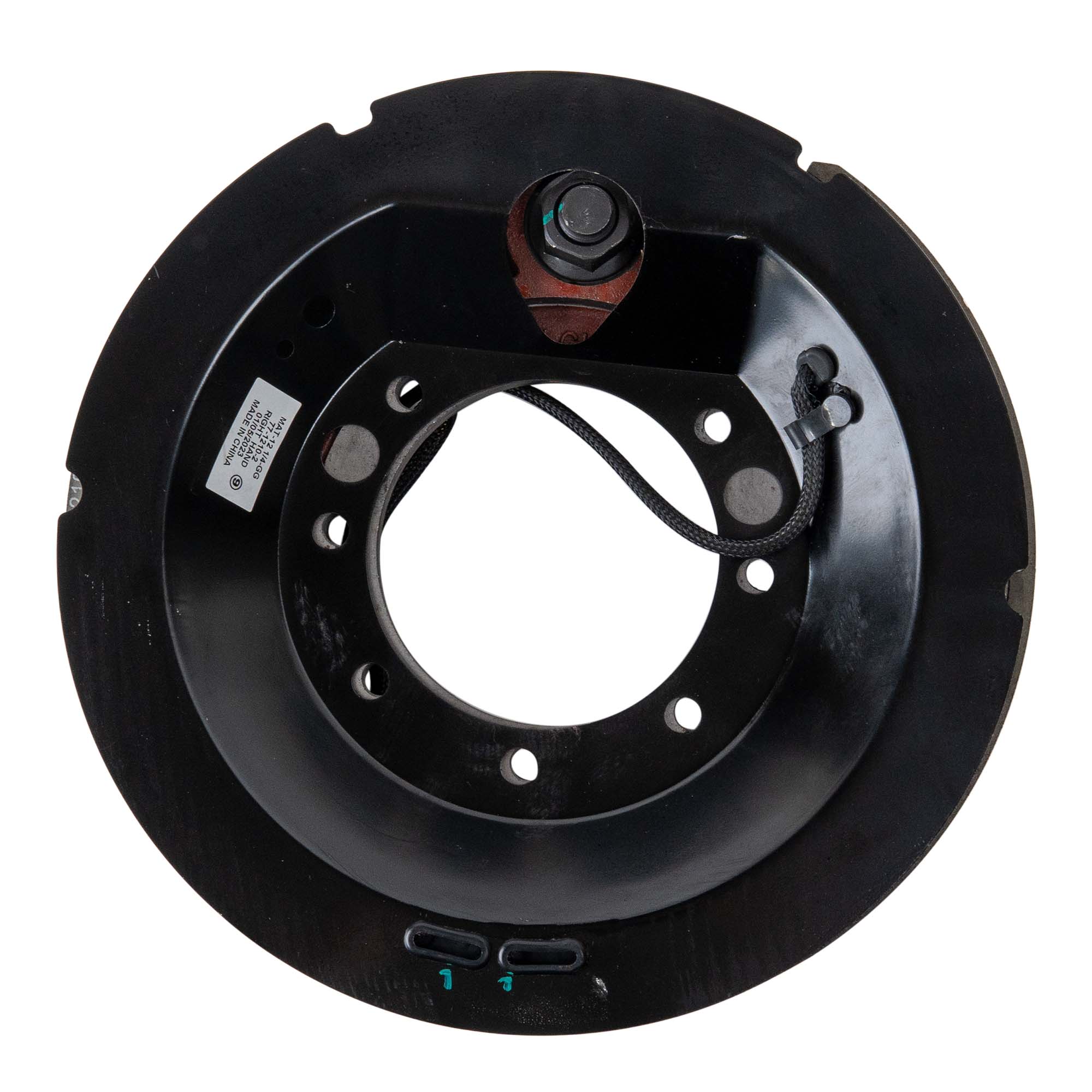

Adjustment ports in the rear of the assembly allow for easy adjustment.
Whole brake assemblies make replacing brakes a breeze. Seven bolts and two wires is all it takes for new brakes, sold separately.
1 Year Warranty
This brake is NOT COMPATIBLE with Rockwell Axles

This 10K general duty trailer axle brake assembly is designed for the right-hand, or passenger side, of your trailer. It will fit most 10K axles from Dexter, TK, and other manufacturers, and our team can help you decide if it's the right part for your business. The installation process is simple and you'll have your trailer back on the road in no time at all. If you have questions, then please contact us online today. At The Trailer Parts Outlet, we're here to make sure you have access to quality options at affordable prices. Order your new 10K trailer axle brake assembly today!

Note: New brakes need to be burnished by braking 20-30 times at an approximate speed of 40 mph slowing the vehicle to 20 mph. Allow brakes to cool in between brake applications.
